Ignition Key In Signal, Antitheft

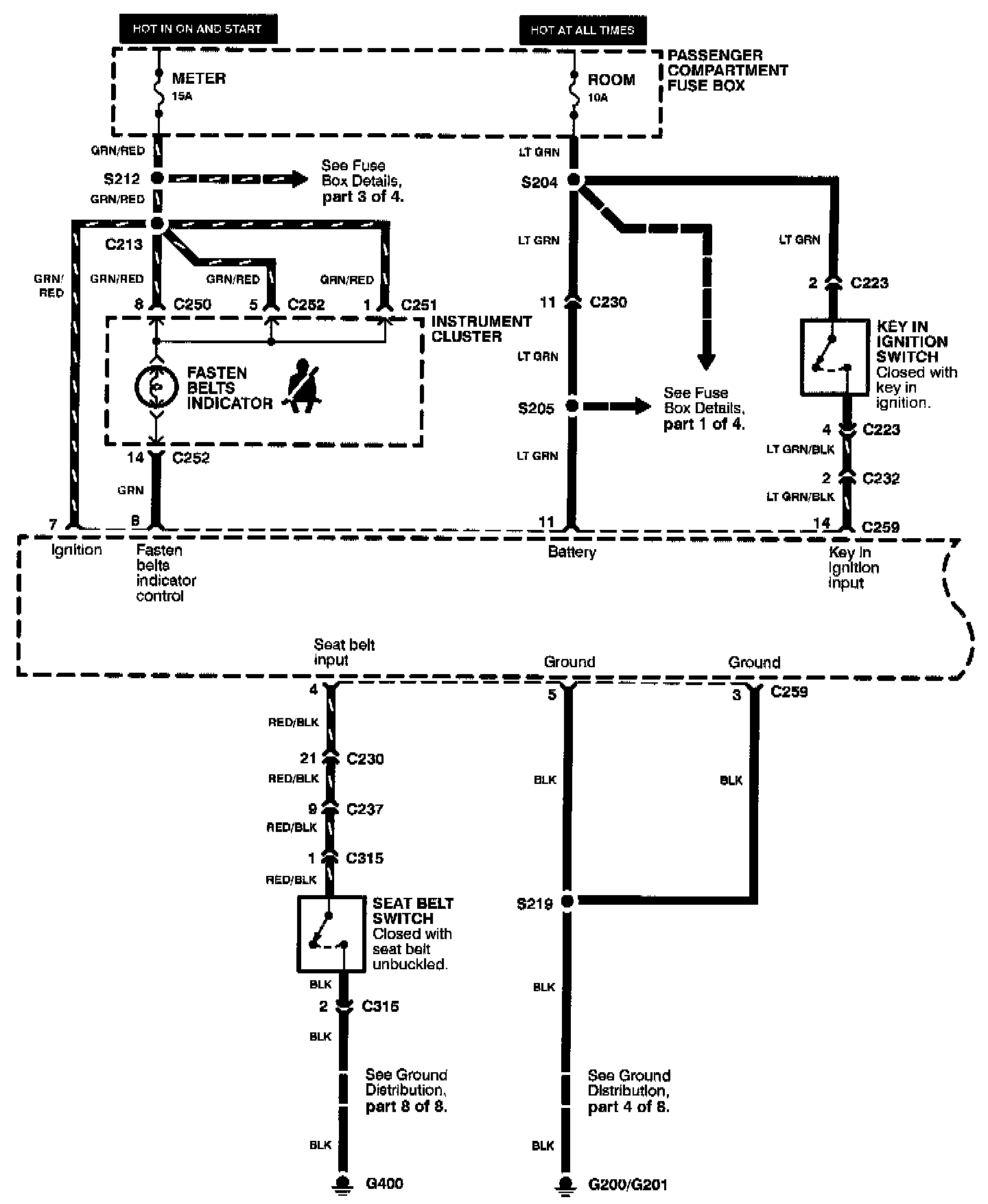

Ignition Key Warning,Fasten Belts Indicator,and Lights On Warning (Part 1 Of 2):

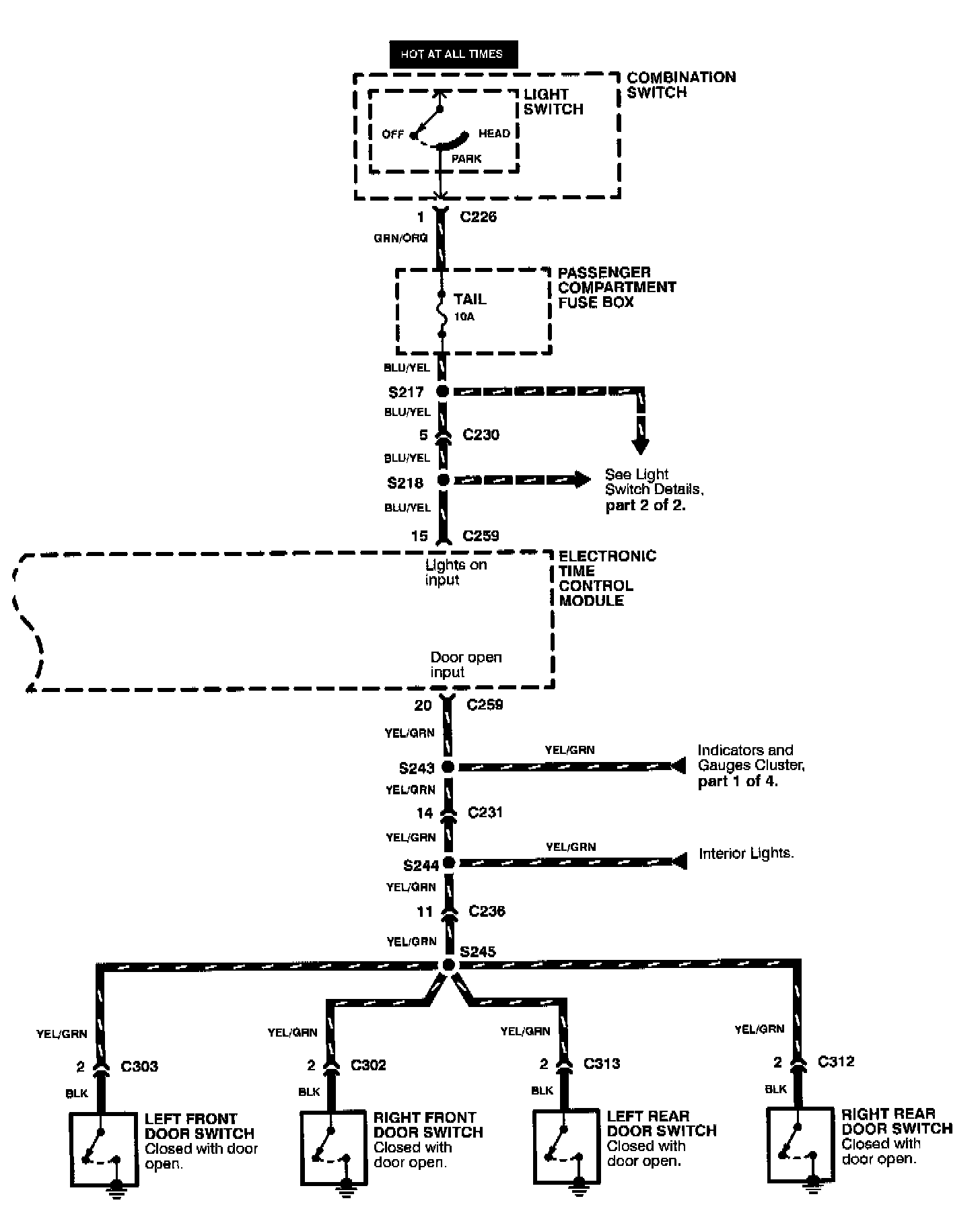

Ignition Key Warning,Fasten Belts Indicator,and Lights On Warning (Part 2 Of 2):
