Electrical Diagrams

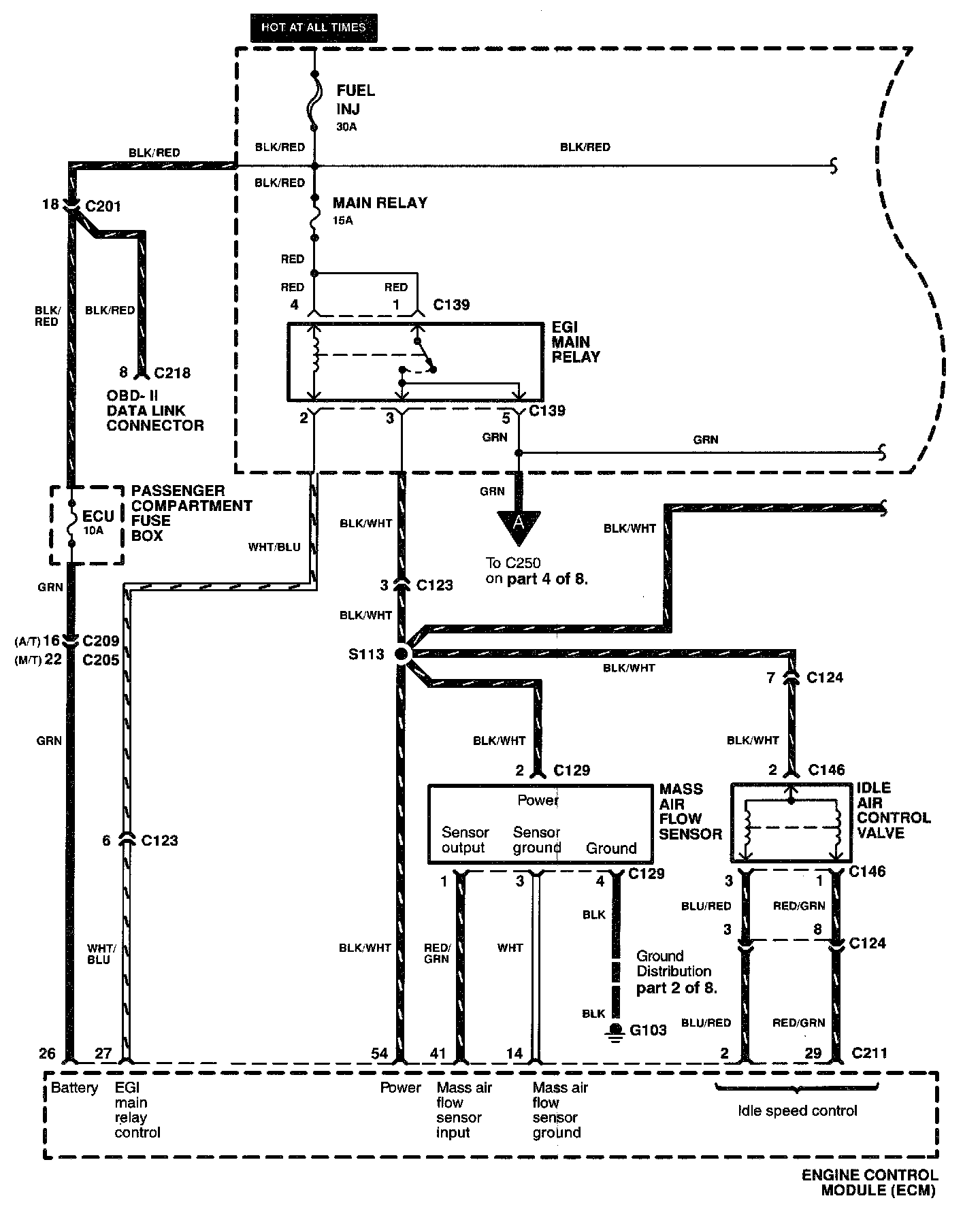

Part 1 0f 8:




Sequential Multiport Fuel Injection (SFI) (Part 1 0f 8)
Engine Control Module (ECM)
EGI Main Relay
Idle Air Control Valve
Mass Airflow Sensor
Passenger Compartment Fuse Box

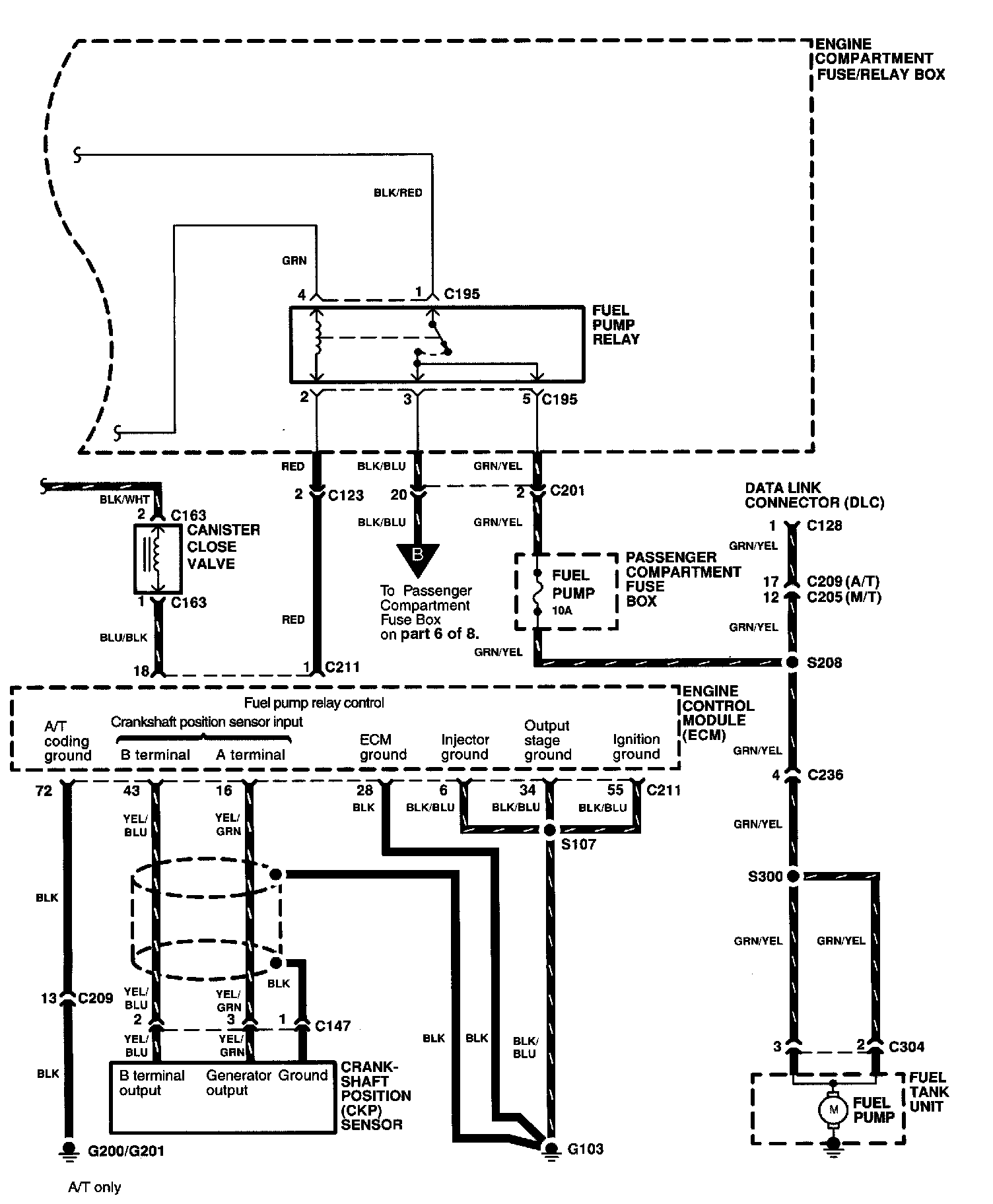

Part 2 Of 8:




Sequential Multiport Fuel Injection (SFI) (Part 2 0f 8)
Canister Close Valve
Crankshaft Position (CKP) Sensor
Engine Control Module (ECM)
Fuel Tank Unit Engine Compartment
Fuel Pump Relay
Fuse/relay Box
Passenger Compartment Fuse Box

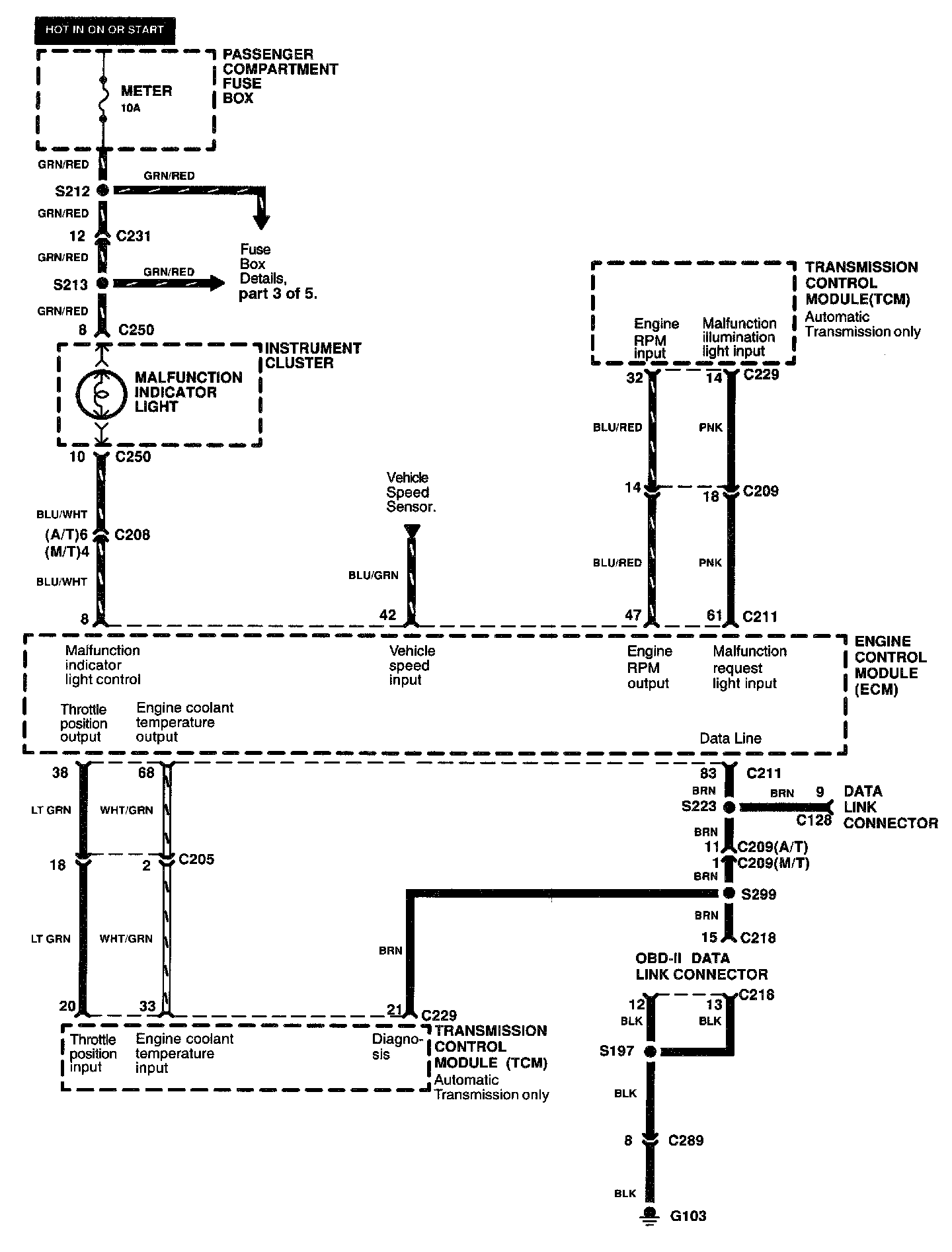

Part 3 Of 8:




Sequential Multiport Fuel Injection (SFI) (Part 3 0f 8)
Engine Control Module (ECM)
Instrument Cluster
Passenger Compartment Fuse Box
Transmission Control Module (TCM)

Part 4 0f 8:




Sequential Multiport Fuel Injection (SFI) (Part 4 0f 8)
Camshaft Position (CMP) Sensor
Engine Control Module (ECM)
Fuel Injector #1
Fuel Injector #2
Fuel Injector #3
Fuel Injector #4
Purge Solenoid Valve

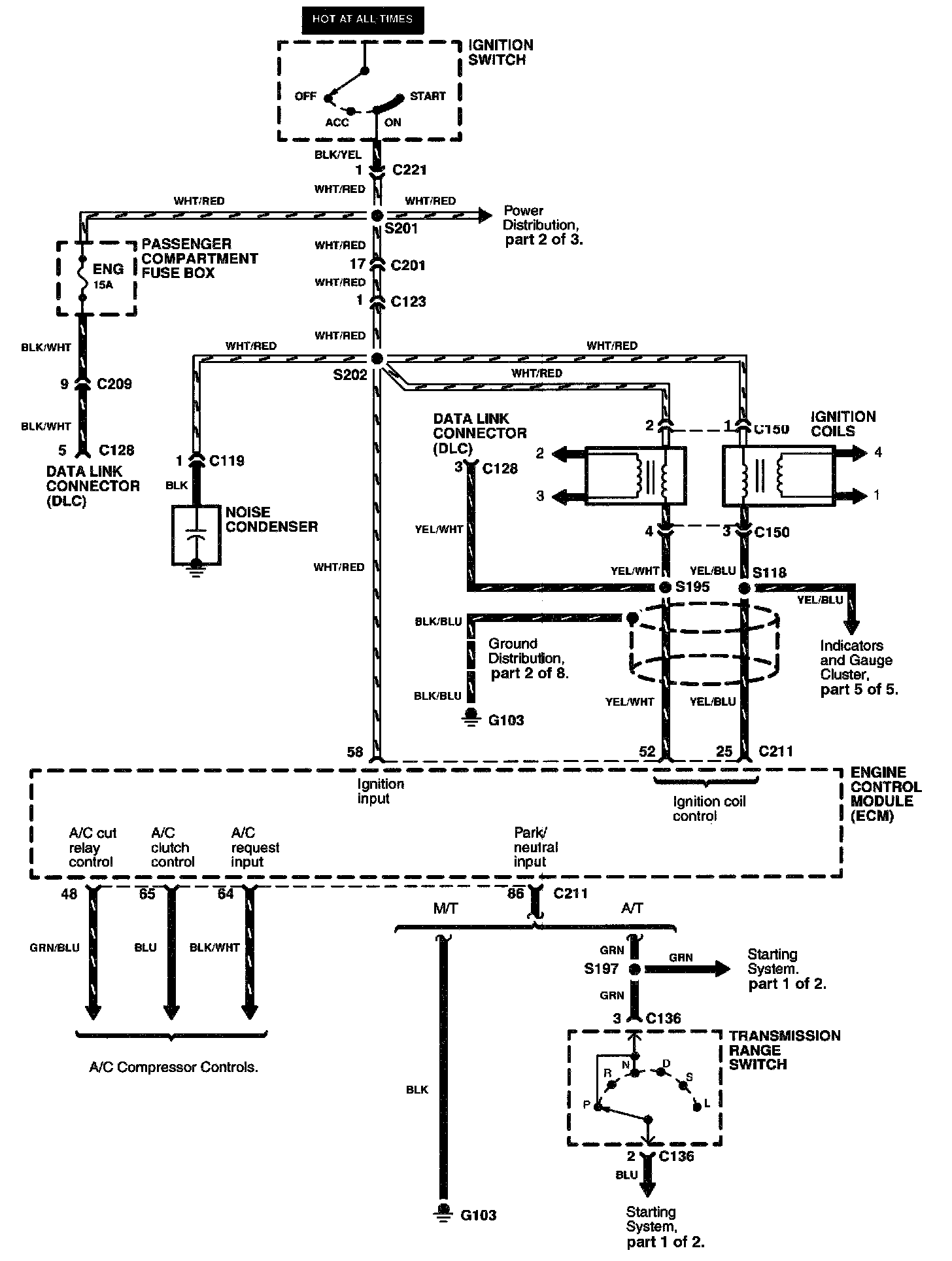

Part 5 Of 8:




Sequential Multiport Fuel Injection (SFI) (Part 5 0f 8)
Engine Control Module (ECM)
Ignition Coils
Ignition Switch
Noise Condenser
Passenger Compartment Fuse Box
Transmission Range Switch

Part 6 Of 8:




Sequential Multiport Fuel Injection (SFI) (Part 6 0f 8)
Engine Control Module (ECM)
Front Heated Oxygen Sensor (HO2S)
Passenger Compartment Fuse Box
Rear Heated Oxygen Sensor (HO2S)

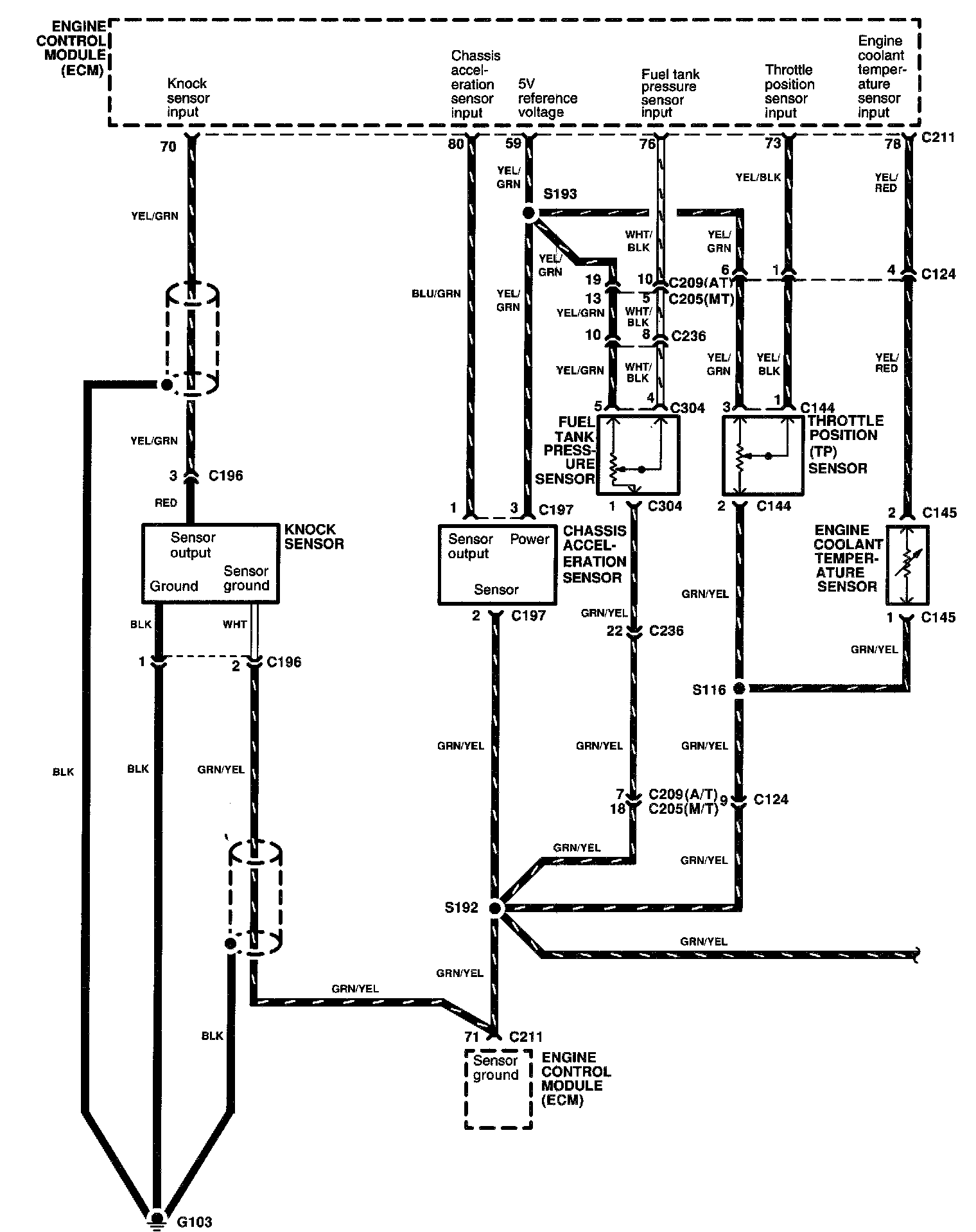

Part 7 Of 8:




Sequential Multiport Fuel Injection (SFI) (Part 7 0f 8)
[1][2]Chassis Acceleration Sensor
Engine Coolant Temperature Sensor
Engine Control Module (ECM)
Fuel Tank Pressure Sensor
Knock Sensor
Throttle Position (TP) Sensor

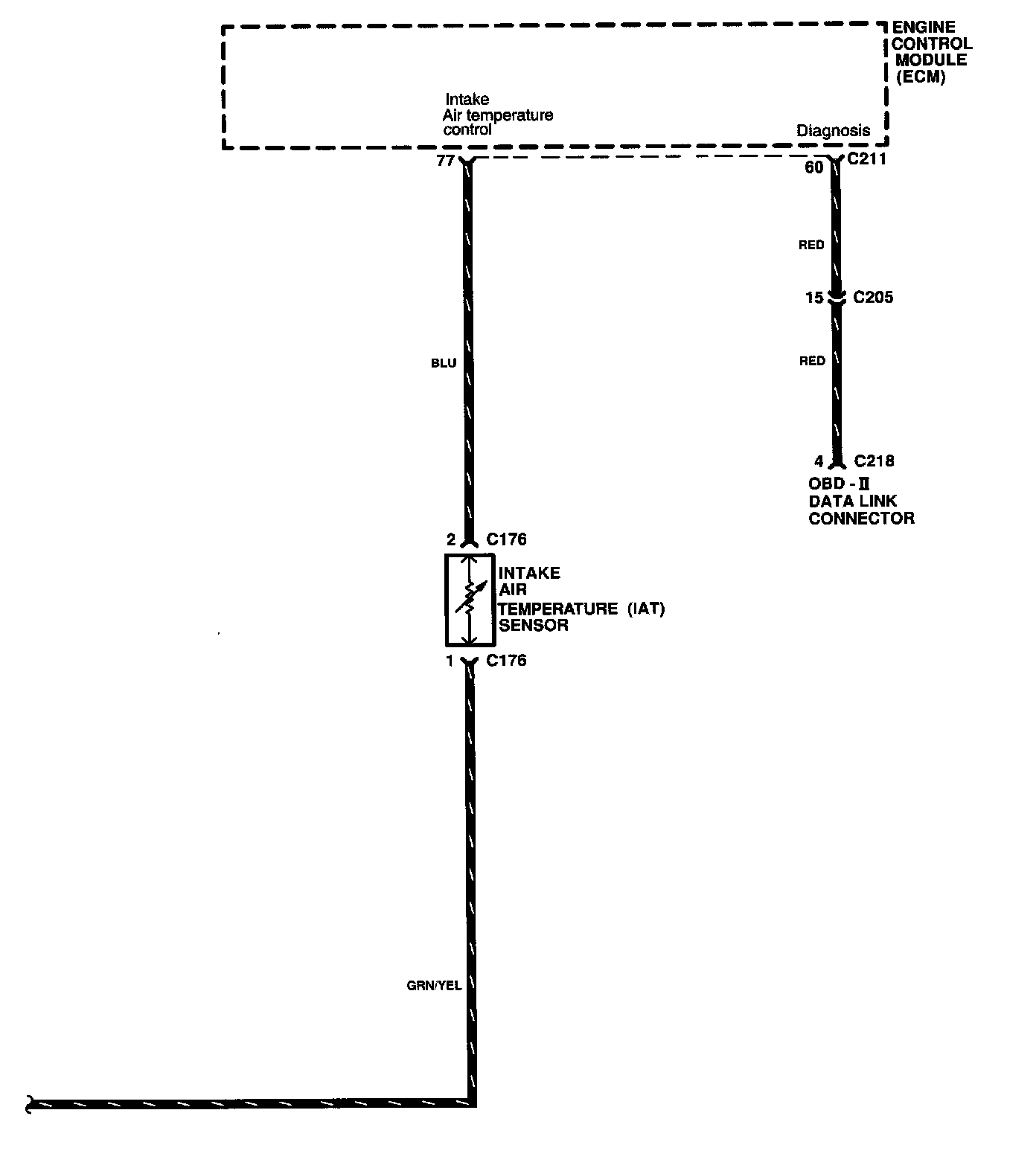

Part 8 Of 8:




Sequential Multiport Fuel Injection (SFI) (Part 8 Of 8)
Intake Air Temperature (IAT) Sensor
Engine Control Module (ECM)
