Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

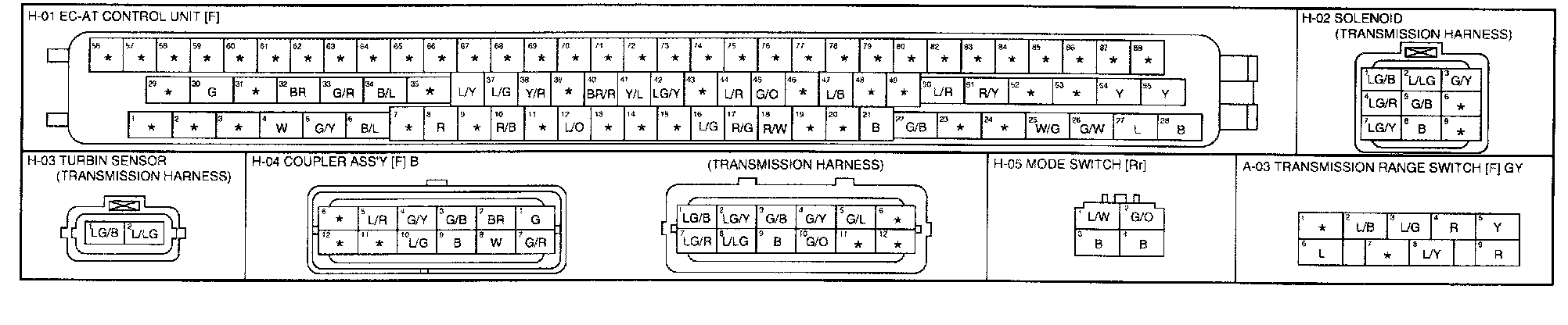

H - Automatic Transmission Controls Connectors:
