Control Assembly: Service and Repair

Ventilation Control Panel

Removal
1. Disconnect battery.
Remove the center panel trim.




2. Remove four mounting screws.
3. Remove the ventilation control panel from the mounting space.
4. Disconnect the electrical wire harness connector from the rear of the unit.
5. Remove the glove box by removing two installation screws.
6. Remove the temperature cable from the heater unit by carefully depressing the plastic retaining tab and remove the cable from the retaining clip.
7. Disconnect the fresh air/recirculation cable from the blower motor assembly by carefully depressing the plastic tab and remove the cable from the retaining clip.

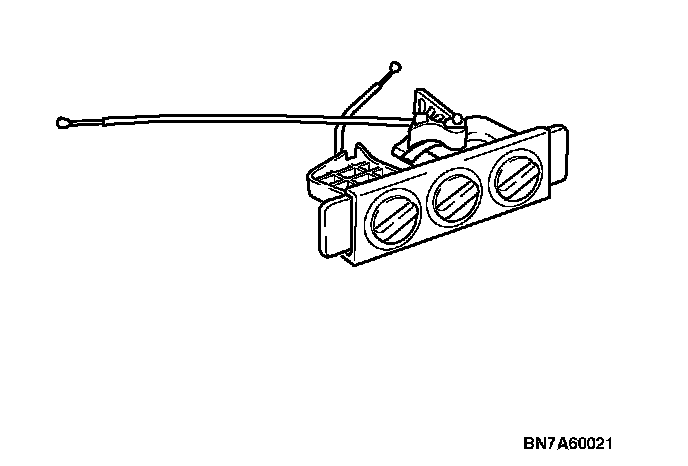

8. Remove the ventilation control panel from the instrument panel.

Installation
1. Mount the ventilation control panel in position in the instrument panel.
2. Depress the plastic tab on the blower motor assembly and connect the fresh air/recirculation cable in place into the retaining clip.
3. Depress the plastic tab on the heater assembly and connect the temperature cable in place in the retaining clip.
4. Install the glove box by installing two mounting screws.
5. Connect the electrical wire harness connector to the rear of the ventilation control panel.
6. Mount the ventilation control panel into position and install four mounting screws.
7. Install the center panel trim.
