Home
>>
Kia
>>
2002
>>
Sportage EX 4WD L4-2.0L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

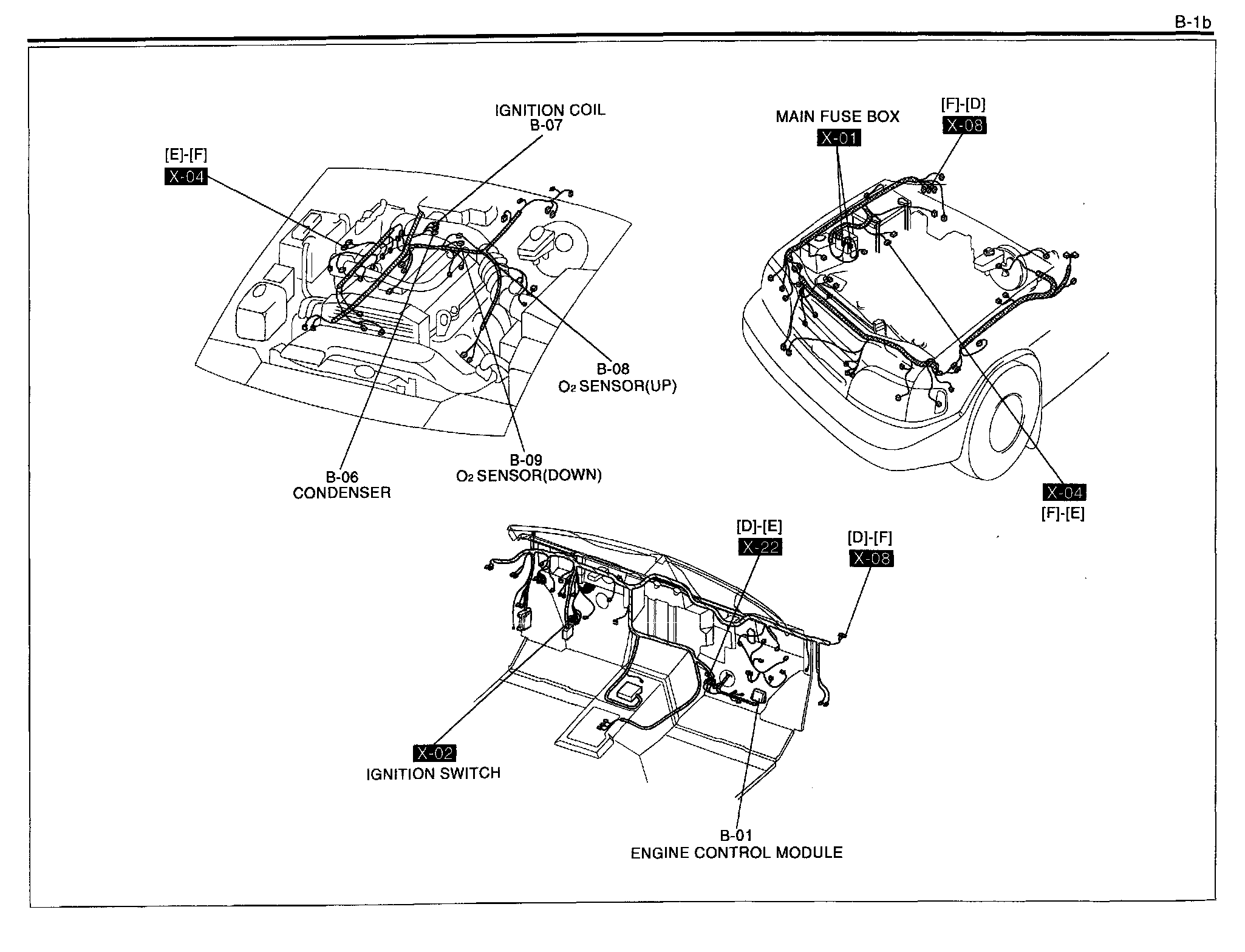

B-1B - Engine Control System
B-1B - Engine Control System
B-1b - Engine Control System Harness / Connector Symbols:
