Manual Transmission/Transaxle

FASTENER TIGHTENING SPECIFICATIONS
5th/Reverse Spring Plug 44 ft. lbs. (60 Nm)
Backup Light Switch 15 ft. lbs. (20 Nm)
Bearing Support Plate Bolt 18 ft. lbs. (24 Nm)
Change Lever Bolt 18 ft. lbs. (24 Nm)
Clutch Release Cylinder Bolt 29 ft. lbs. (39 Nm)
Crankshaft Position Sensor Bolt 5 ft. lbs. (7 Nm)
Dust Cover Bolt 15 ft. lbs. (20 Nm)
Dust Cover Nut 15 ft. lbs. (20 Nm)
Exhaust-to-Bracket Bolt 20 ft. lbs. (27 Nm)
Front Cover-to-Transmission Housing Bolt 5 ft. lbs. (7 Nm)
Mount-to-Cross Bar Nut 15 ft. lbs. (20 Nm)
Driveshaft-to-Flange Bolt 27 ft. lbs. (36 Nm)
Reverse Idler Gear Locking Plate Bolt 18 ft. lbs. (24 Nm)
Reverse Idler Gear Mounting Bolt 18 ft. lbs. (24 Nm)
Reverse Stopper Bolt 18 ft. lbs. (24 Nm)
Shift Control Rod Support Block Bolt 18 ft. lbs. (24 Nm)
Spring Cover Bolt 5 ft. lbs. (7 Nm)
Starter Motor Bolt 29 ft. lbs. (39 Nm)
Transfer Case Side Mount Bolt 38 ft. lbs. (52 Nm)
Transfer Case Side Mount Nut 38 ft. lbs. (52 Nm)
Transfer Lever-to-Transfer Case 20 ft. lbs. (27 Nm)
Transmission Cross Bar-to-Chassis Bolt 32 ft. lbs. (44 Nm)
Transmission Drain Plug 22 ft. lbs. (30 Nm)
Transmission Housing-to-Rear-Cover Bolt 18 ft. lbs. (24 Nm)
Transmission Mount-to-Transfer Case Bolt 80 ft. lbs. (108 Nm)
Transmission Oil Level/Filler Plug 22 ft. lbs. (30 Nm)
Transmission-to-Engine 6 mm Bolt 5 ft. lbs. (7 Nm)
Transmission-to-Engine 10 mm Bolt 29 ft. lbs. (39 Nm)
Transmission-to-Engine 14 mm Bolt 80 ft. lbs. (108 Nm)
Transmission-to-Transfer Case 18 ft. lbs. (24 Nm)

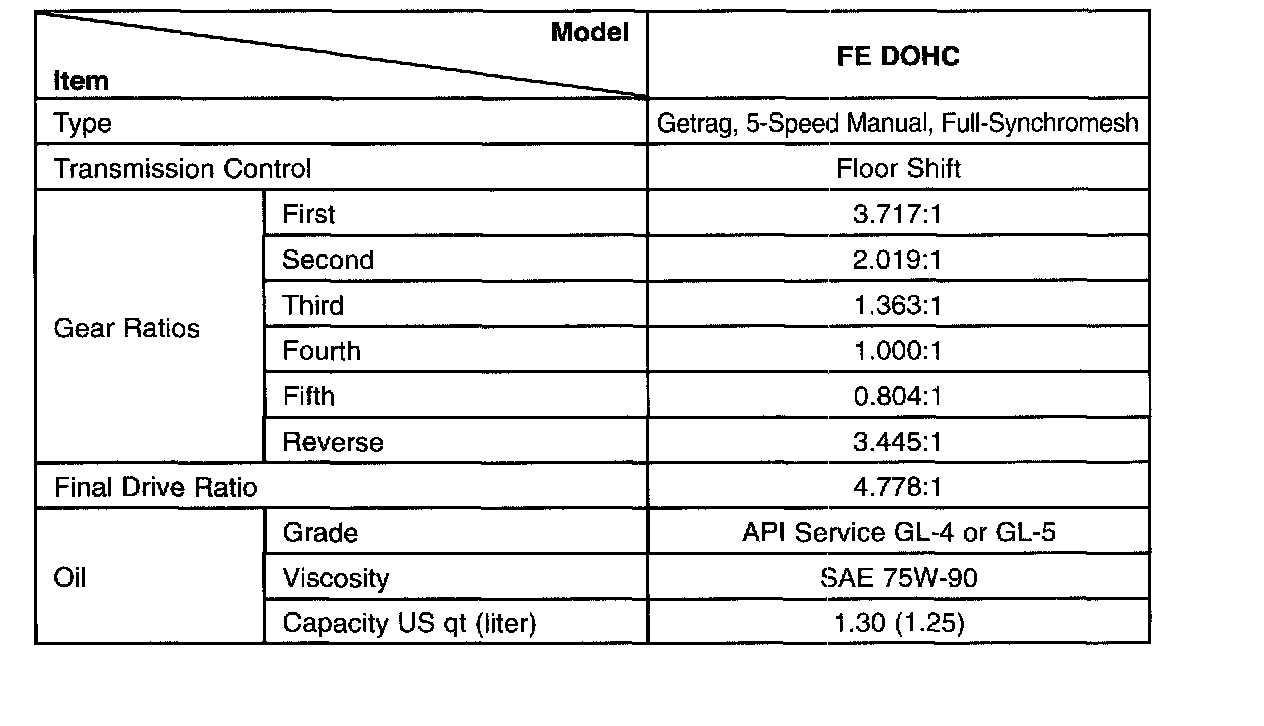

General Specifications

GEAR END PLAY
1st 0.0039 - 0.0078 inch (0.10-0.20 mm)
2nd 0.0039 - 0.0098 inch (0.10 - 0.25 mm)
3rd 0.0019 - 0.0059 inch (0.05 - 0.15 mm)
Reverse 0.0019 - 0.0059 inch (0.05 - 0.15 mm)
Reverse Idler Gear 0.0039 inch (0.10 mm)
