Test Light

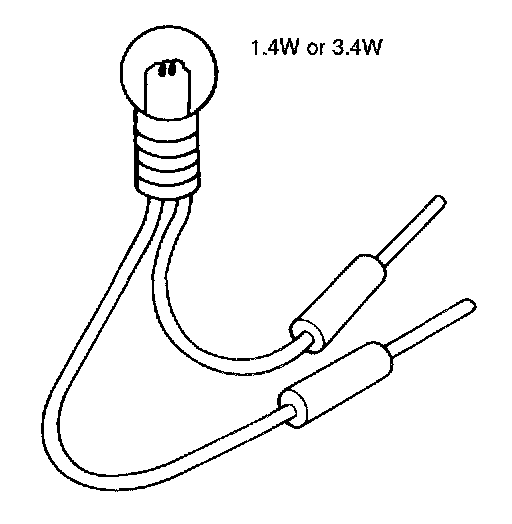

TEST LIGHTThe test light, as shown in the figure, uses a
12 V bulb. The two lead wires should be connected to probes.
The test light is used for simple voltage checks and for checking for short circuits.
NOTE: When checking the control unit, never use a bulb over
3.4 W; to do so may cause damage to the unit.
