Front Bumper: Service and Repair

Front Bumper:

REMOVAL

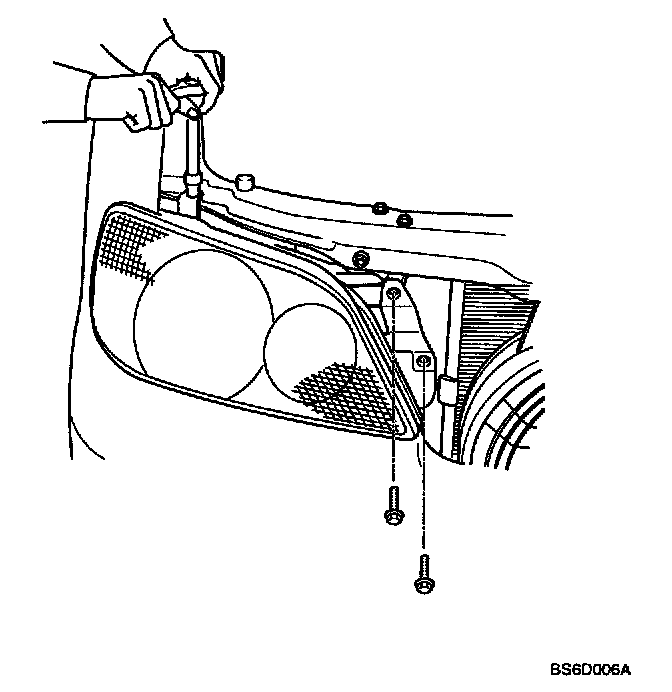

1. Remove headlight and combination light assembly.




a. Remove three mounting bolts.
b. Disconnect electrical connector from rear of light assembly.

2. Remove bumper face and energy absorbent foam assembly.

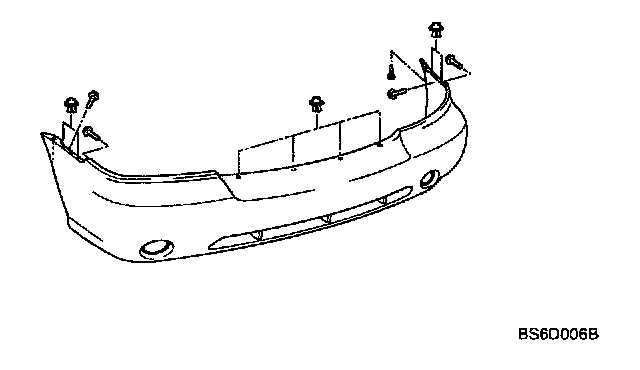

a. Remove eight fasteners and four retaining bolts from top of bumper assembly.

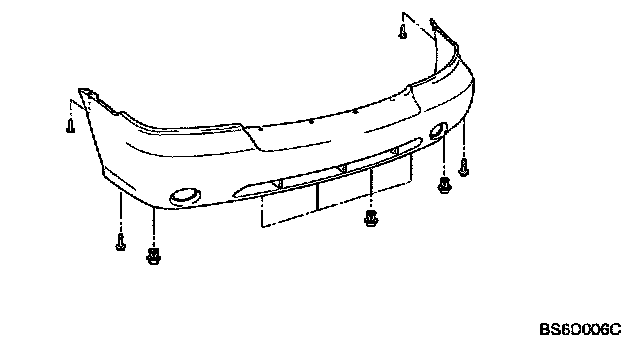

b. Remove six fasteners and two bolts from bottom of bumper assembly.

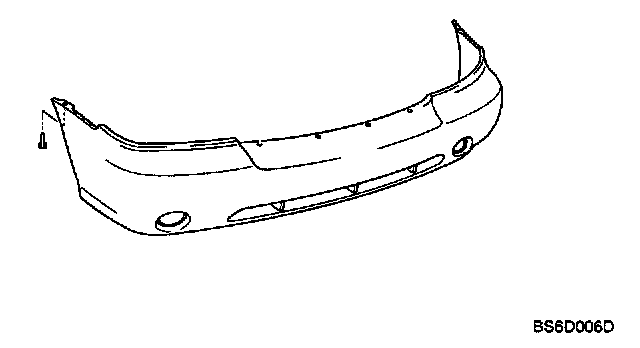

c. Remove two screws from side of bumper assembly.
d. Disconnect electrical connector from fog light assembly.

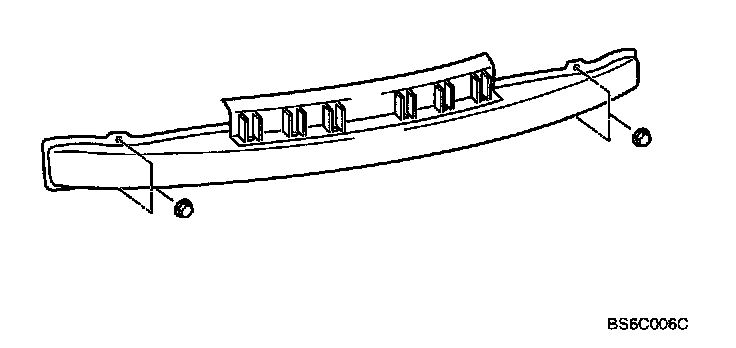

3. Remove bumper reinforcement and bumper stay assembly.
- Remove four mounting nuts from front side of bumper reinforcement.

INSTALLATION

1. Install front bumper in reverse order of removal.

Tightening torque: Bumper mounting nut 10 - 15 N.m (1.0 - 1.5 kg.m, 7 - 11 lb.ft)
