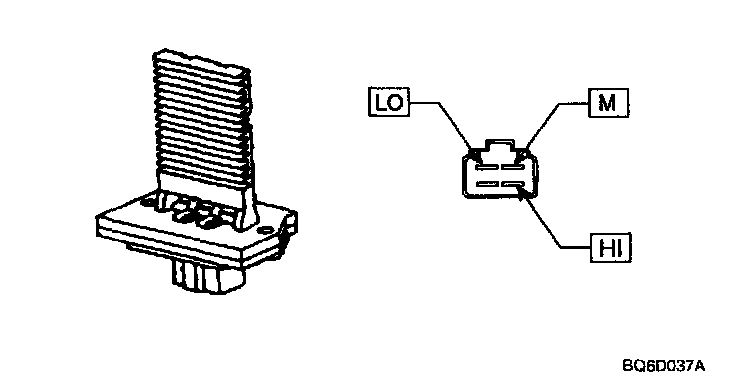

Blower Motor Controller

BLOWER SPEED CONTROLLER

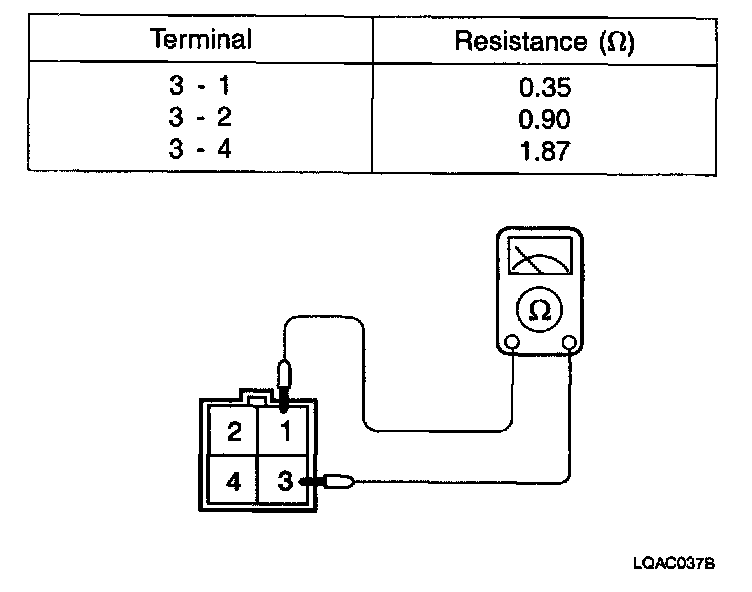

CHECK (FRONT)







1. Check for continuity and resistance between terminals.

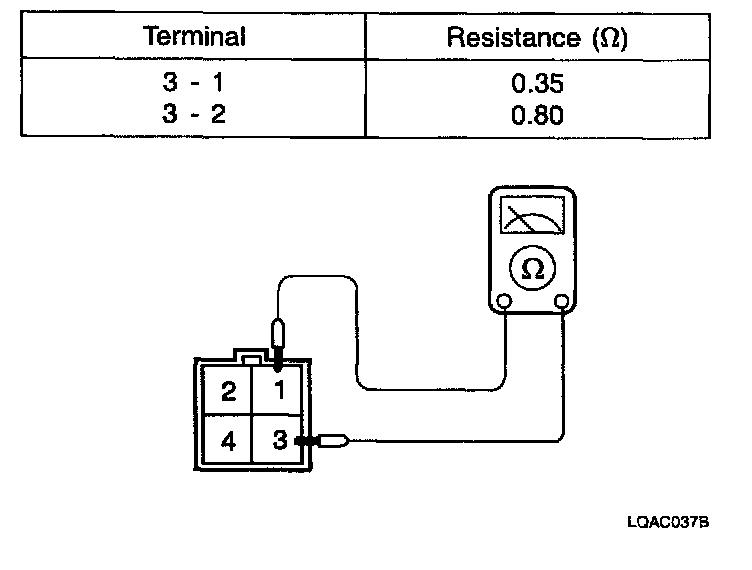

CHECK (REAR)







1. Check for continuity and resistance between terminals.
