Removal and Installation

For additional information see TSB # 3EN-010. For 04 model year see 02 or 03 model year(s) to view this TSB.

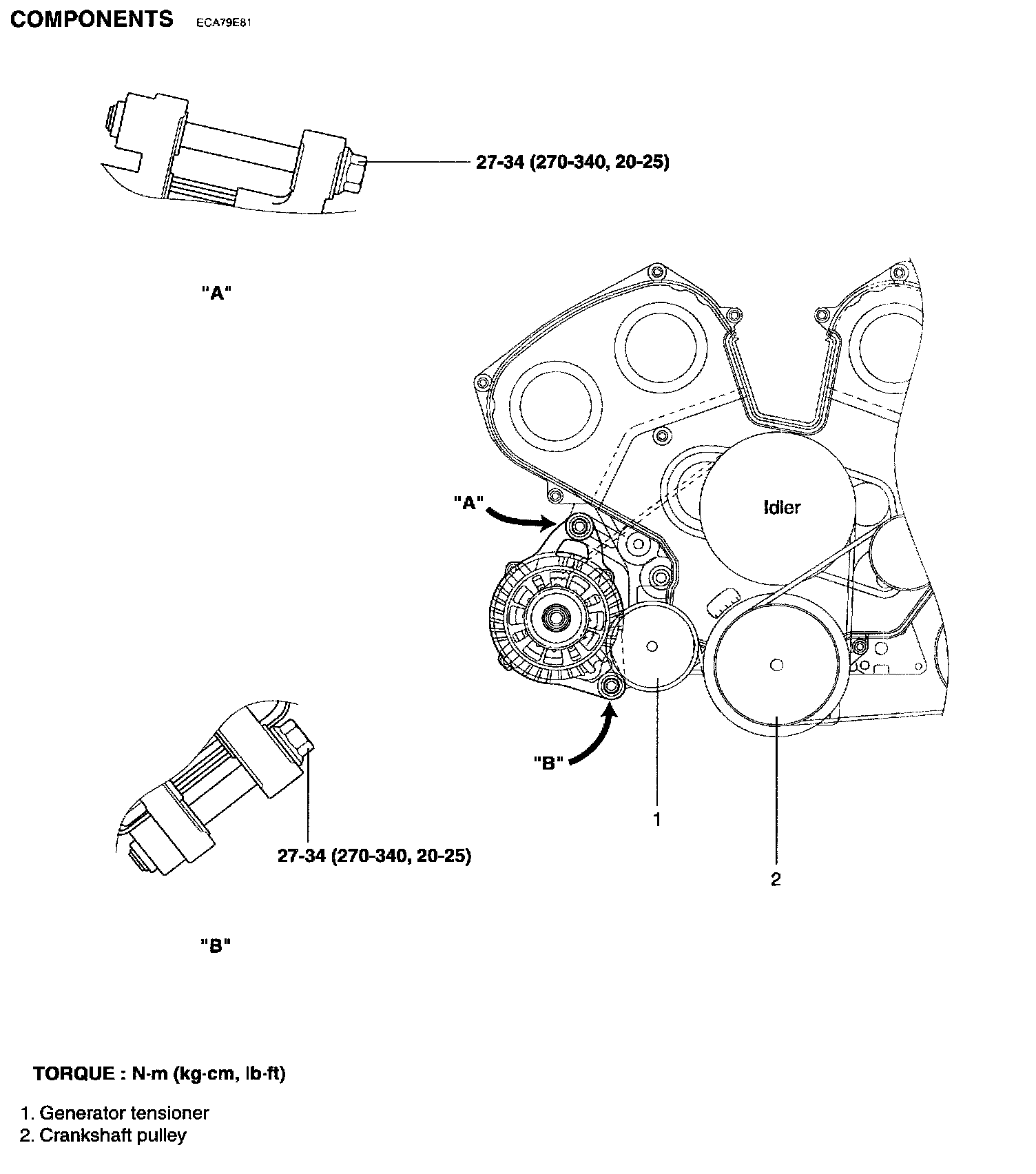

Generator - Components:

REMOVAL

1. Disconnect the battery negative terminal first, then the positive terminal.
2. Disconnect the alternator connector, and remove the cable from the alternator "B" terminal.
3. Remove the drive belt.

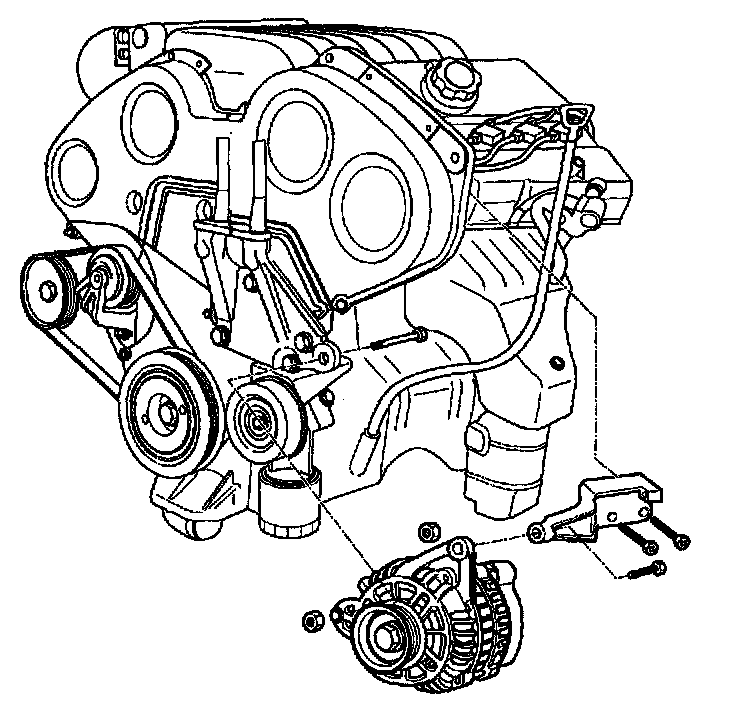

4. Pull out the through bolts and then remove the alternator.



INSTALLATION

1. Place the alternator and insert a support bolt (Do not insert a nut this time).

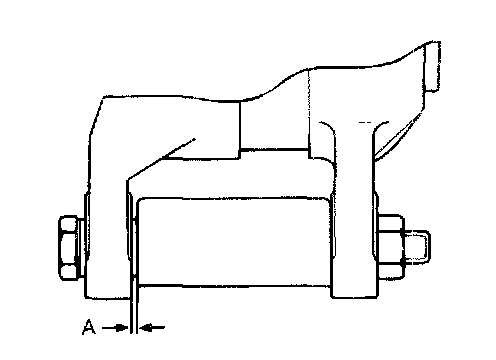

2. After pushing the alternator forward, count that how many spacers (a spacer thickness: 0.198 mm) should be inserted between the alternator front leg and front case as shown in "A".






3. After inserting spacers, insert and tighten a nut securely.
