Body and Frame: Application and ID

BODY DIMENSION INDICATION




PROJECTED DIMENSIONS

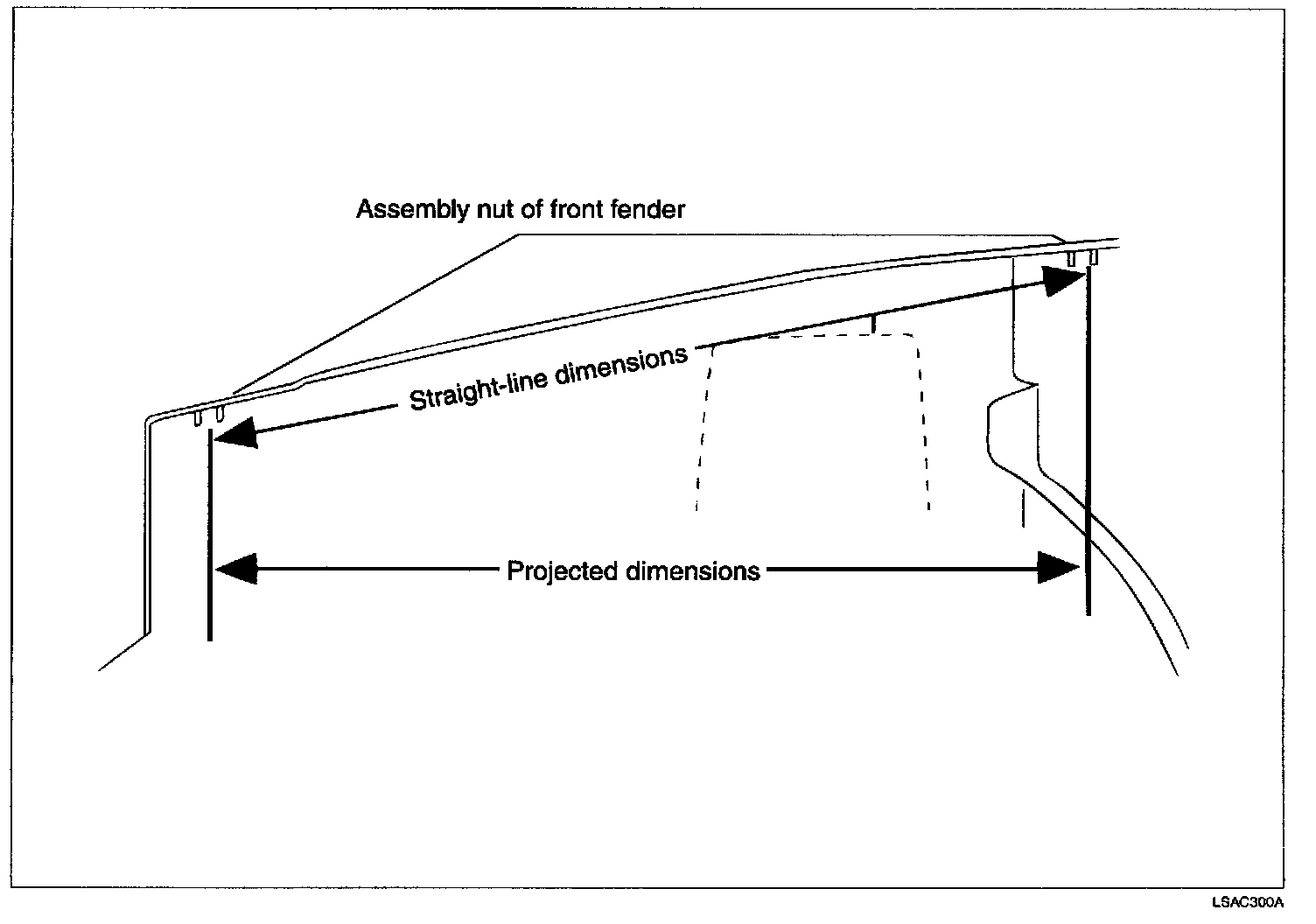

The projected dimension indicates a dimension from a reference point on the body. (Height may be different in some cases)

STRAIGHT-LINE DIMENSIONS (ACTUAL MEASURED DIMENSIONS)
The straight-line dimension indicates an actual measured dimension between the measurement reference points.







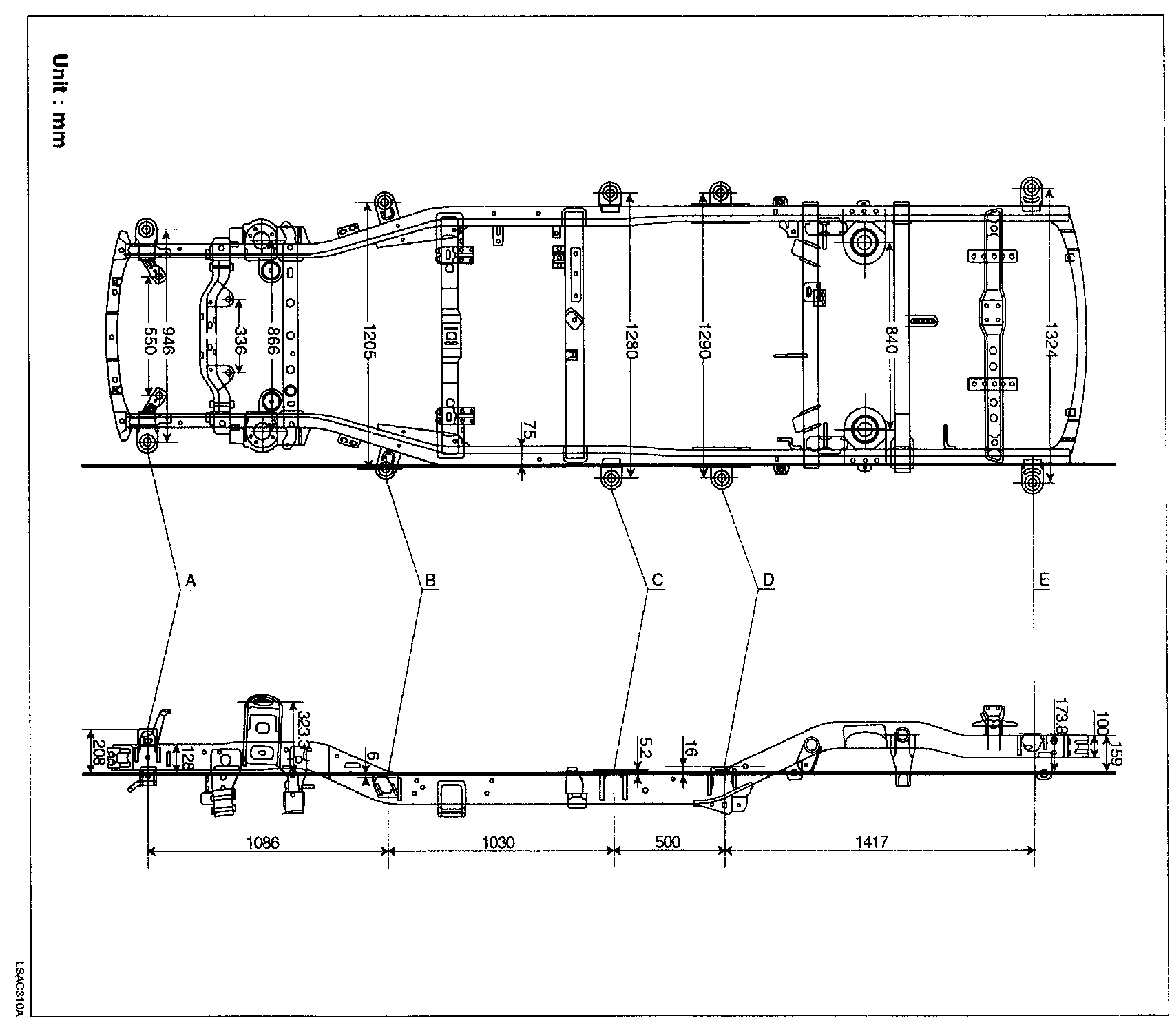

UNDER BODY PROJECTED DIMENSIONS

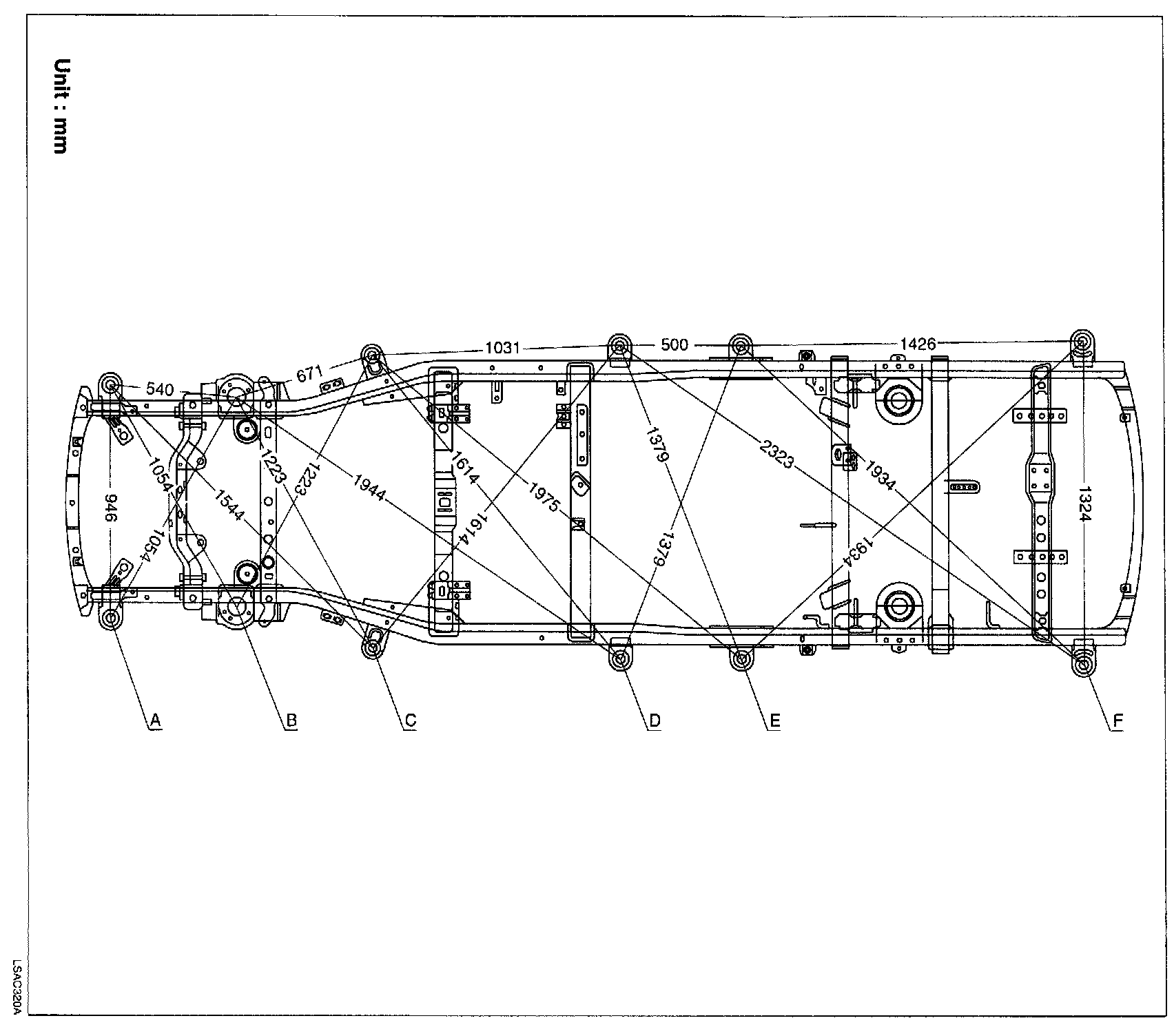

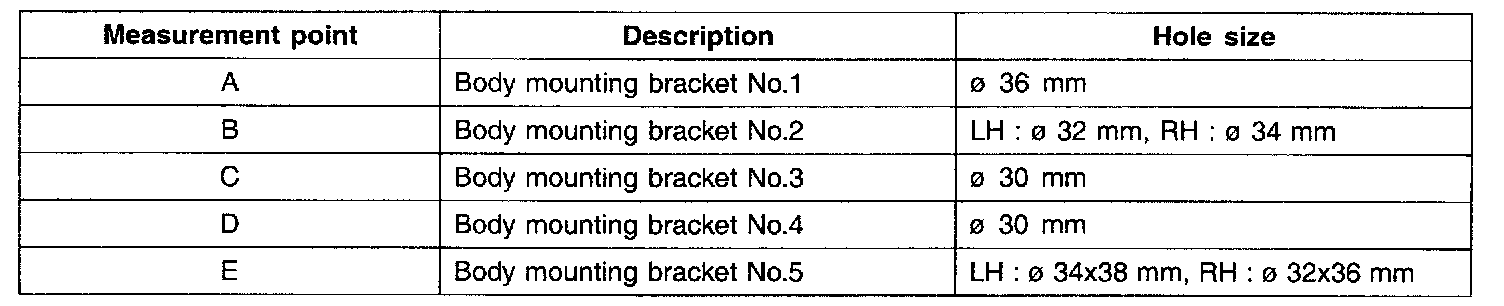

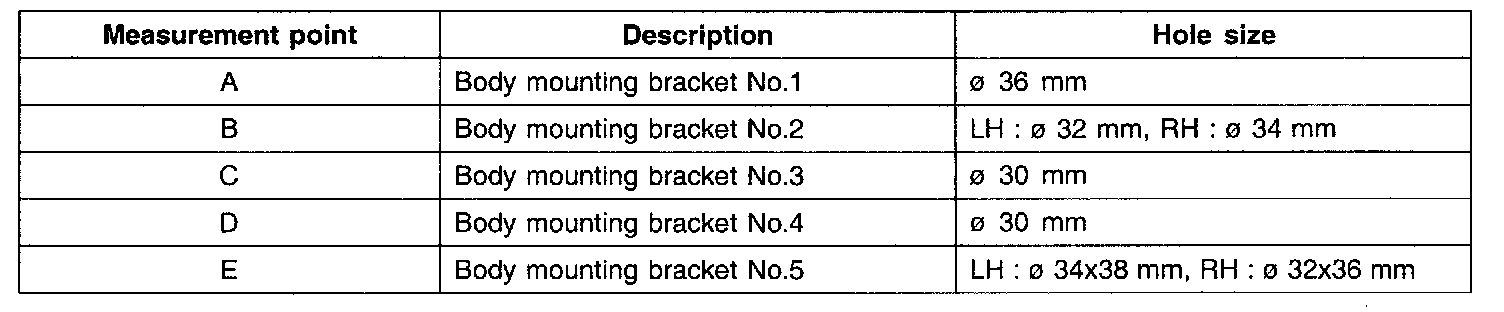

UNDER BODY STRAIGHT-LINE DIMENSIONS
