Automatic Transmission/Transaxle
>>
System Diagram
>>
Reverse & Overdrive Clutch
Reverse & Overdrive Clutch

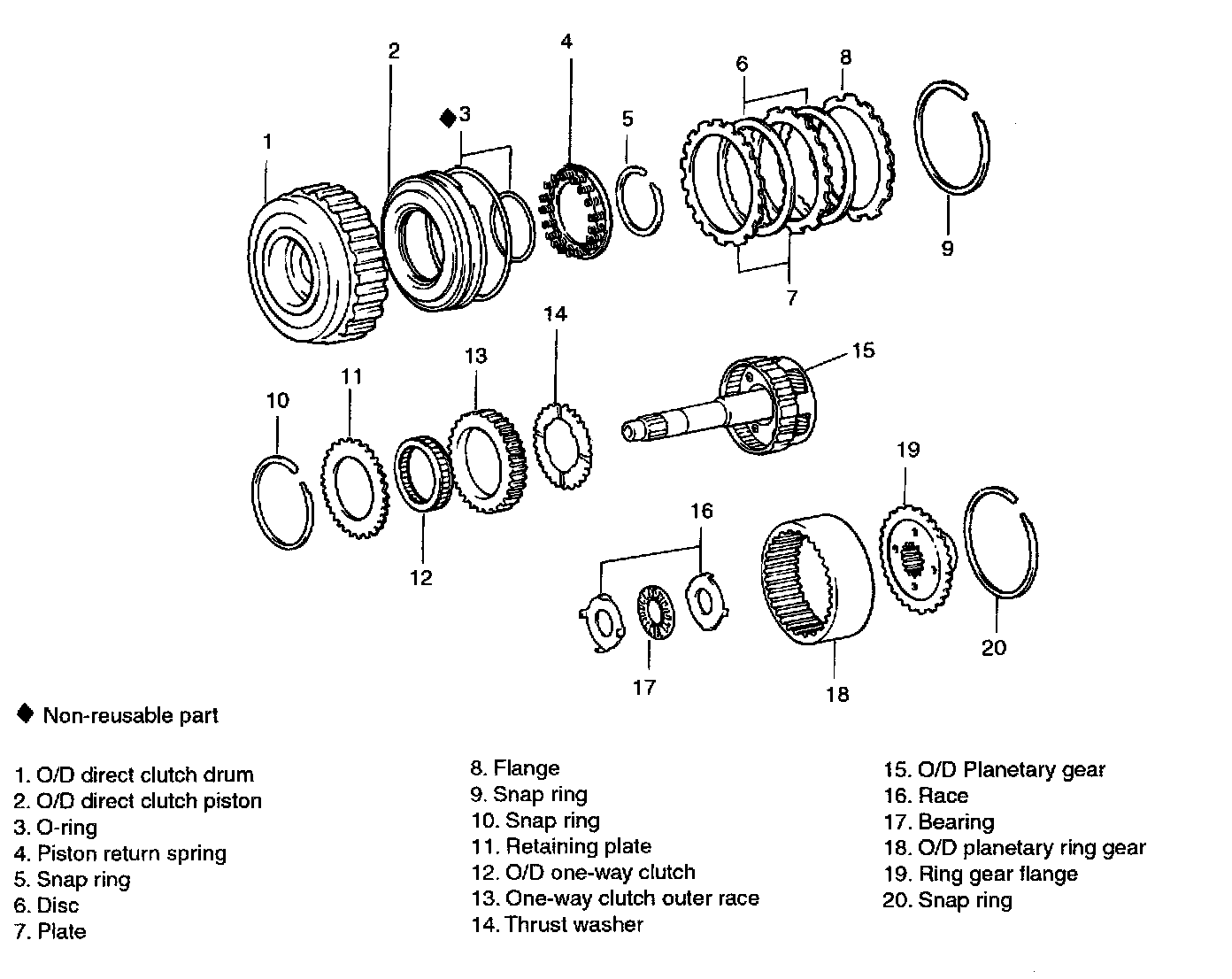

REVERSE & OVERDRIVE CLUTCH
COMPONENTS
