Differential Assembly
>>
Front Differential Carrier

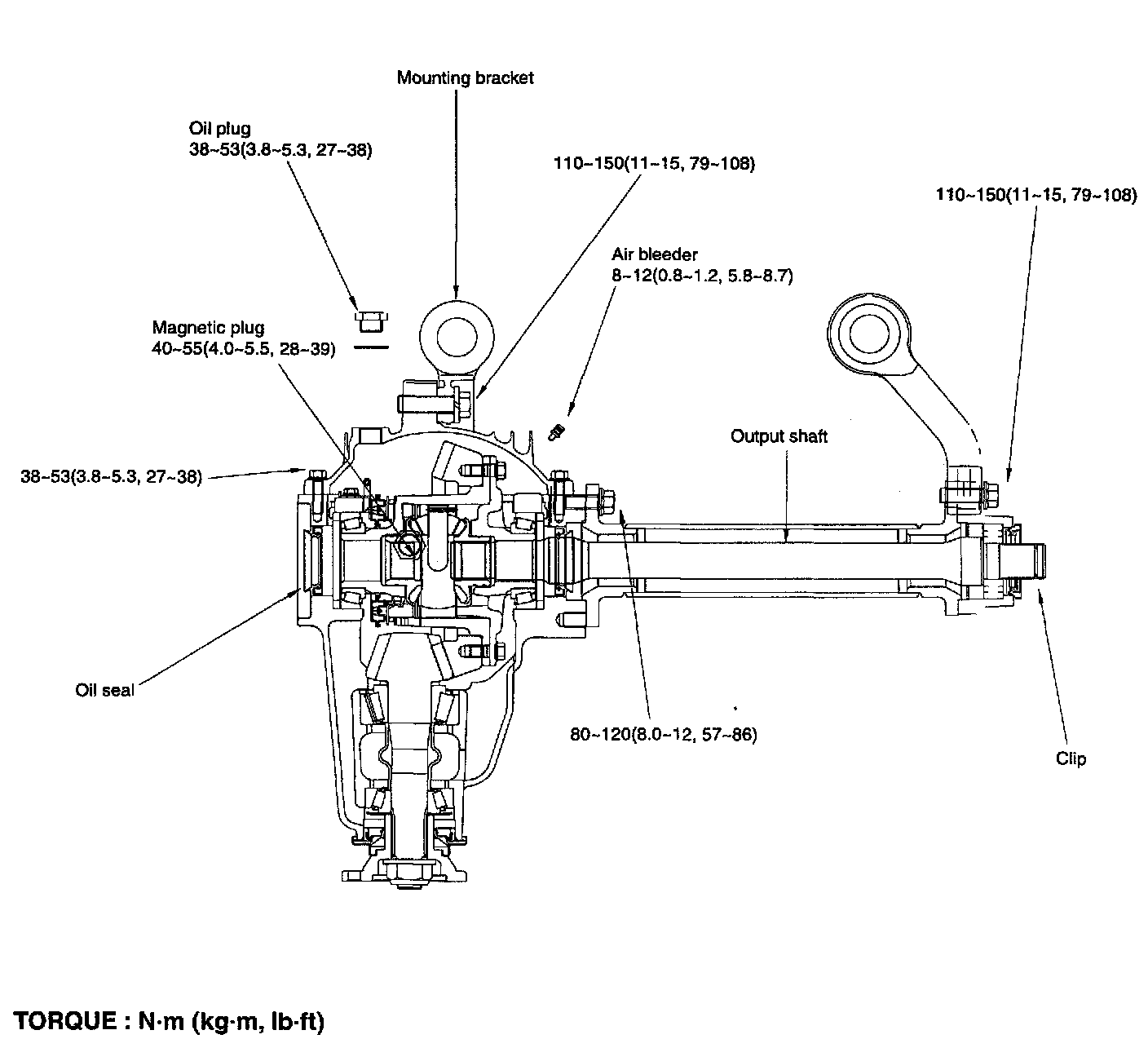

Front Differential Carrier
FRONT
DIFFERENTIAL CARRIER
COMPONENTS
