Oil Pan, Engine

TIGHTENING TORQUE

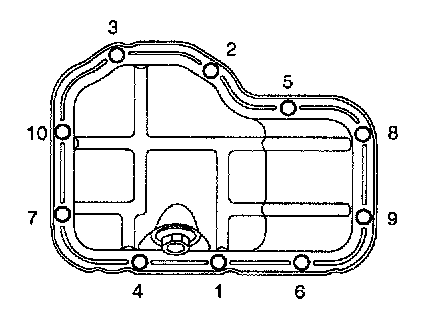

Lower oil pan bolt 10-12 Nm (100-120 kg-cm, 7.2-9 ft. lbs.)

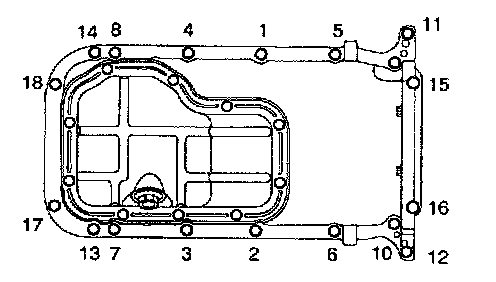

Upper oil pan bolt
[10 x 380 mm (0.937 x 1.4961 inch)] 30-42 Nm (300-420 kg-cm, 22-30 ft. lbs.)
[8 x 22 mm (0.3150 x 0.8661 inch)] 19-28 Nm (190-280 kg-cm, 14-20 ft. lbs.)
[171.5 mm (6.7519 inch)] 5-7 Nm (50-07 kg-cm, 3.7-5 ft. lbs.)
[152.5 mm (6.7520 inch)] 5-7 Nm (50-07 kg-cm, 3.7-5 ft. lbs.)
