Removal and Installation

Generator:

INSTALLATION

1. Place the alternator and insert a support bolt (Do not insert a nut this time).

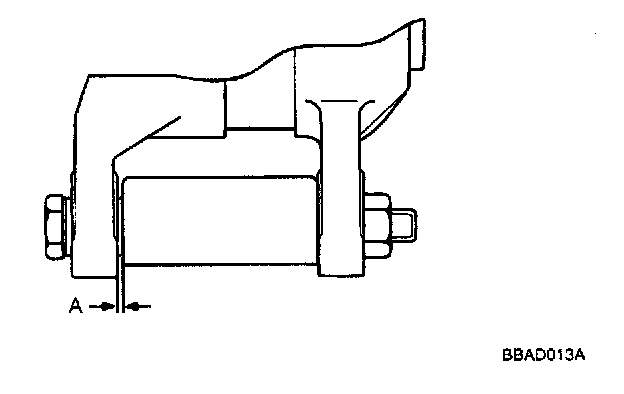

2. After pushing the alternator forward, count that how many spacers (a spacer thickness: 0.198 mm) should be inserted between the alternator front leg and front case as shown in "A".




3. After inserting spacers, insert and tighten a nut securely.
