Disassembly and Reassembly

REASSEMBLY OF THE STOP RING AND SNAP RING

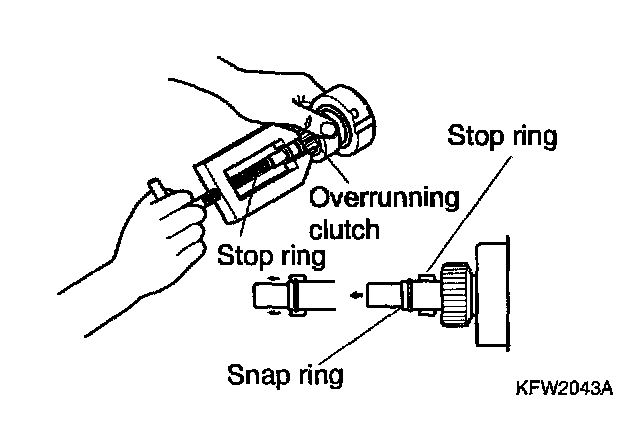

Using a suitable pulling tool, pull overrunning clutch stop ring over snap ring.

DISASSEMBLY REMOVAL OF SNAP RING AND STOP RING




1. Press the stop ring to the snap ring side using a socket wrench to the snap ring side.




2. After removing the snap ring (using snap-ring pliers), remove the stop ring and the overrunning clutch.
