Front Planetary Gear

FRONT PLANETARY GEAR





COMPONENTS

DISASSEMBLY

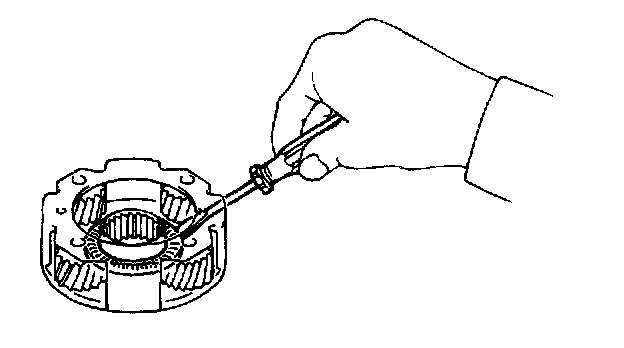

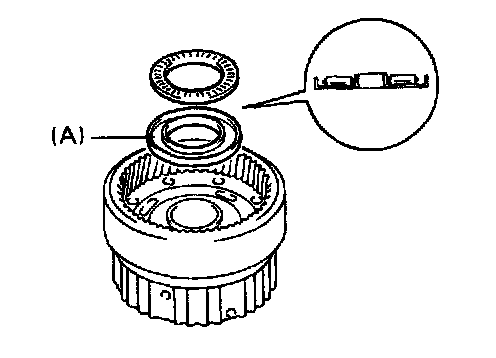

1. Remove the bearing and the race from the front planetary ring gear.

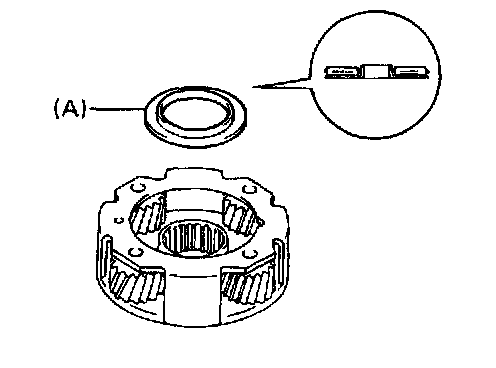

2. Remove the race from the front planetary gear.

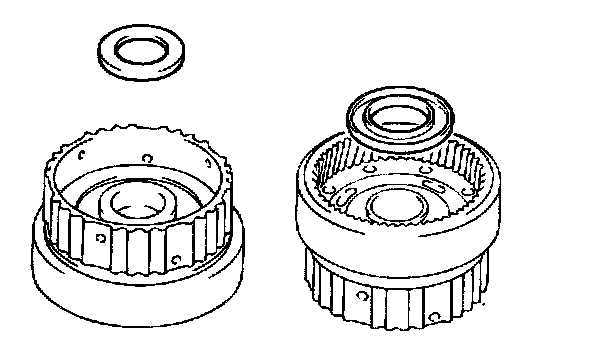

3. Turn over the planetary gear and remove the bearing and the race.

INSPECTION





1. Measure the inner diameter of the front planetary ring gear bushing.
Maximum I.D.: 24.08 mm (0.948 inch)

REASSEMBLY

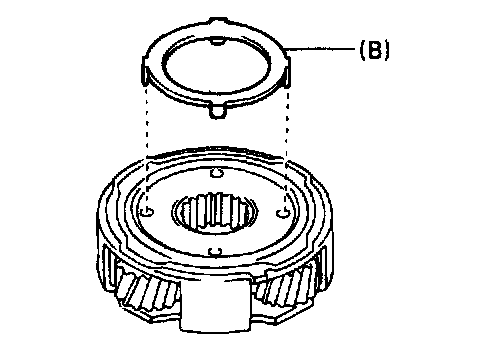

1. Install the race onto the planetary gear.

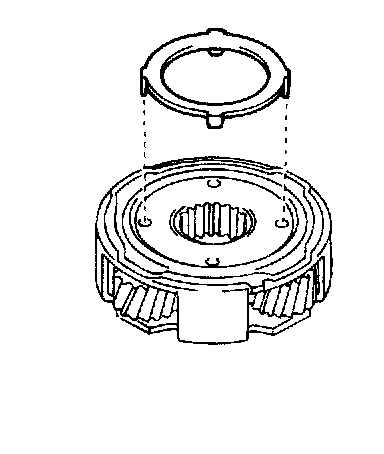

2. Turn over the planetary gear and install the race.

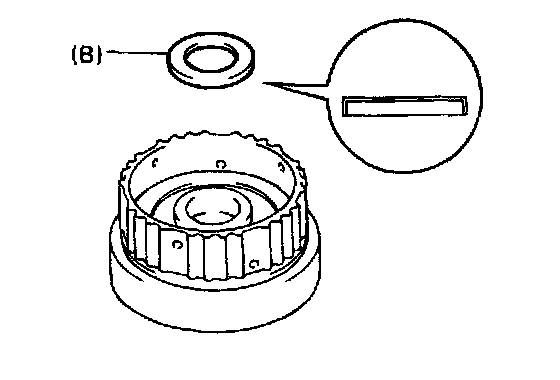

3. Install the race and the bearing onto the front planetary ring gear.





4. Turn over the planetary ring gear and install the race.
