EST Power Flow
EST Power Flow
EST POWER FLOW
1.

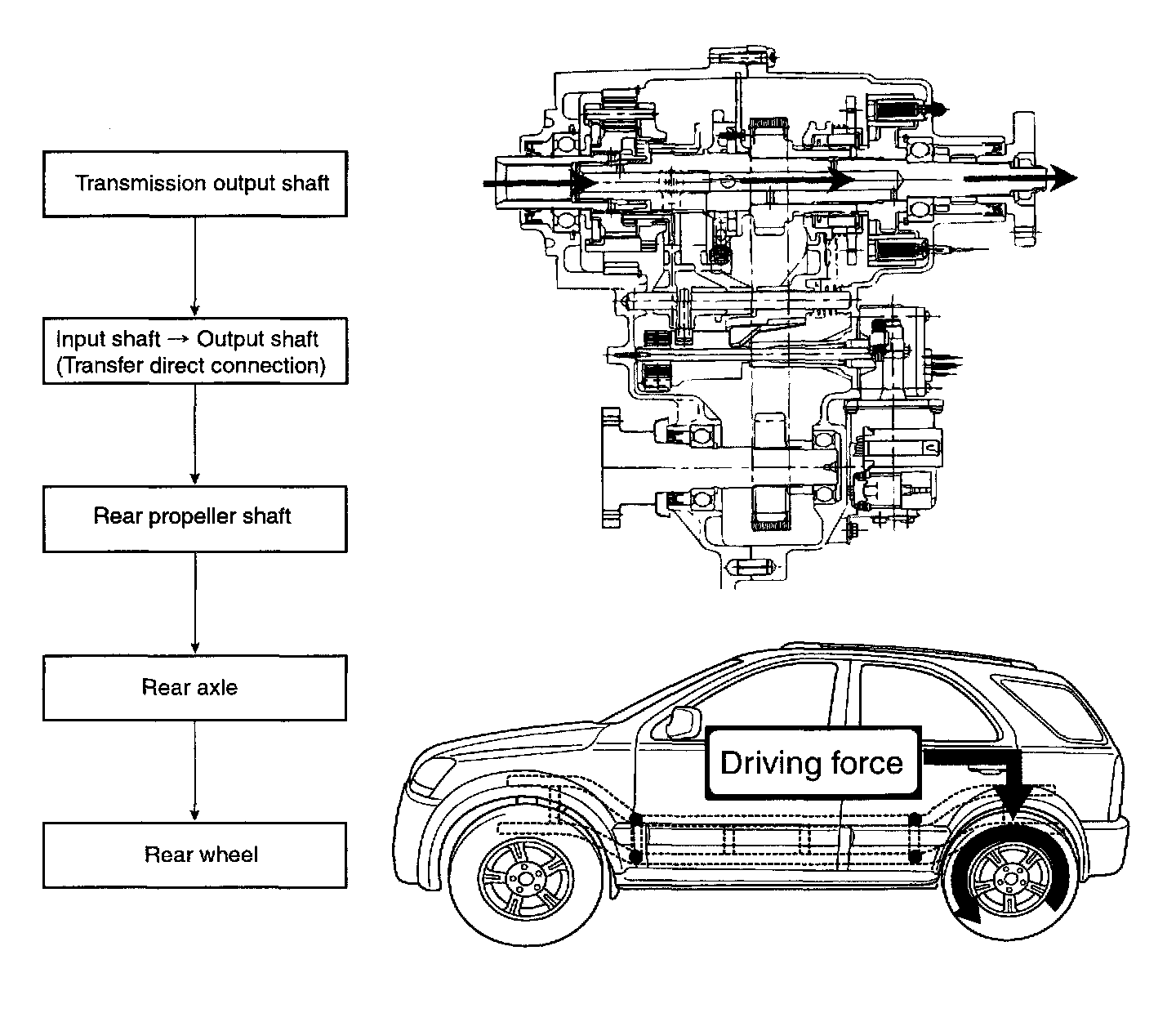

2H Mode (Rear Wheel Drive)
2.

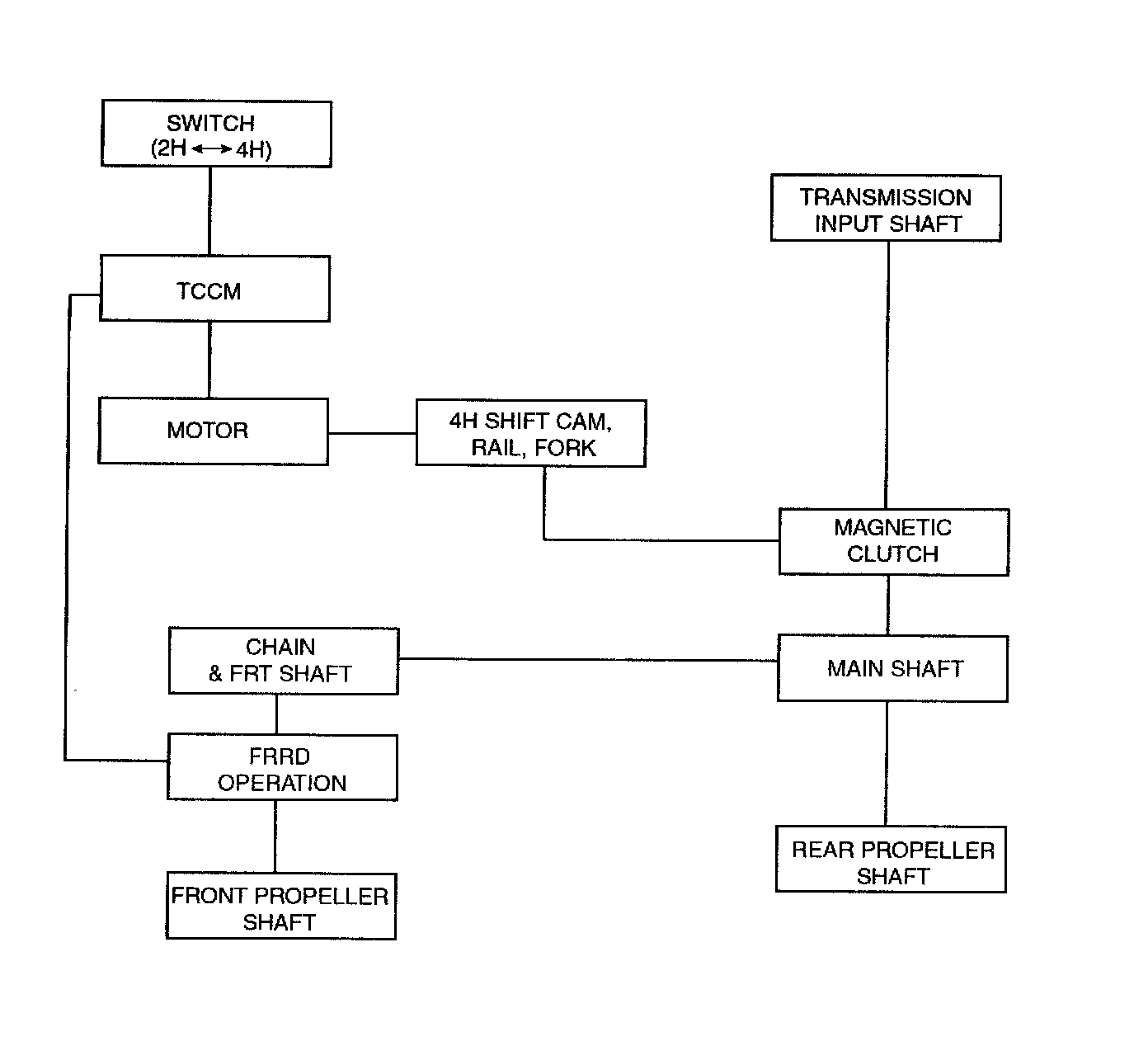

4H Mode (Transfer Operation)
3.

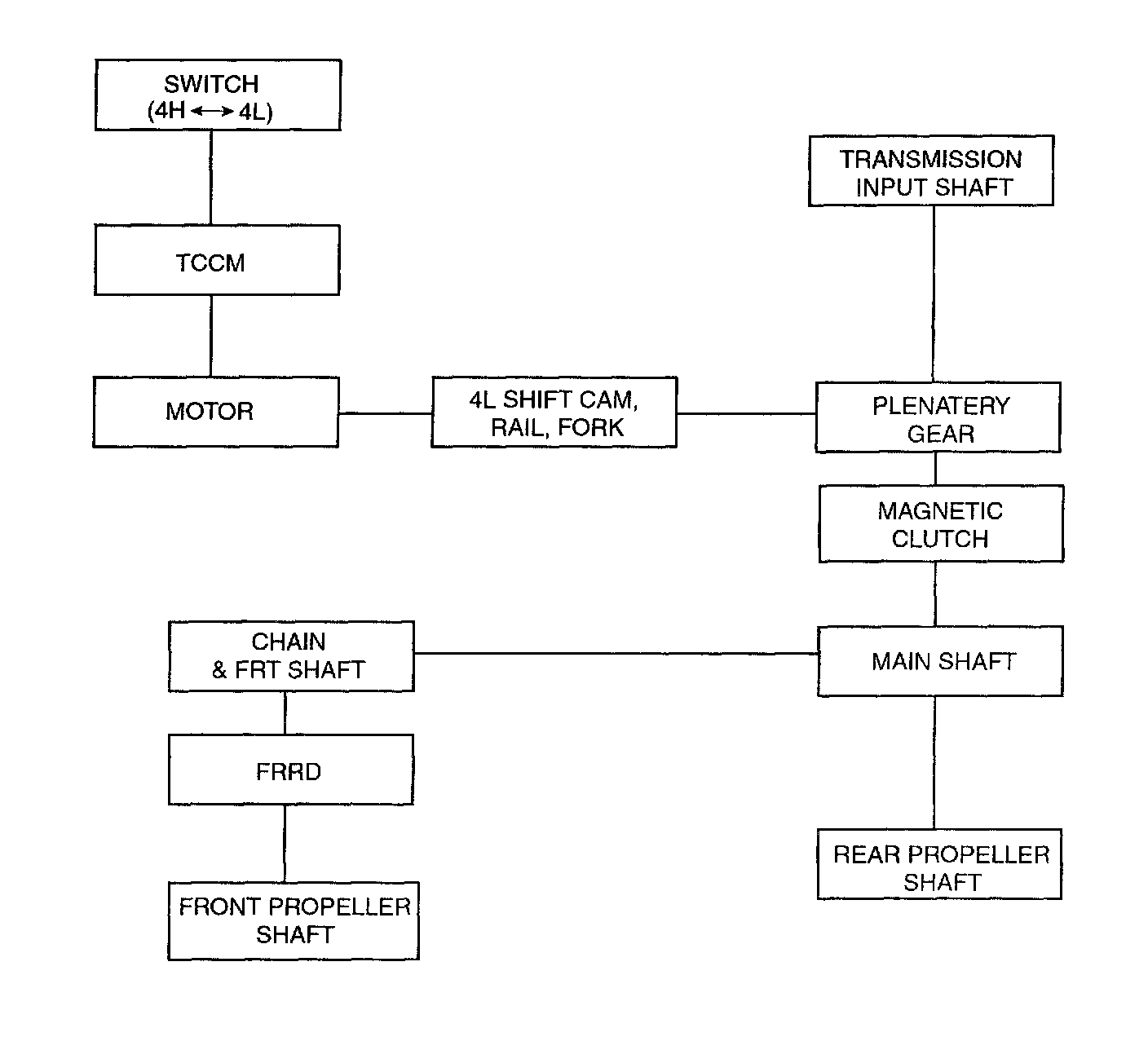

4L Mode
