Chain Drive

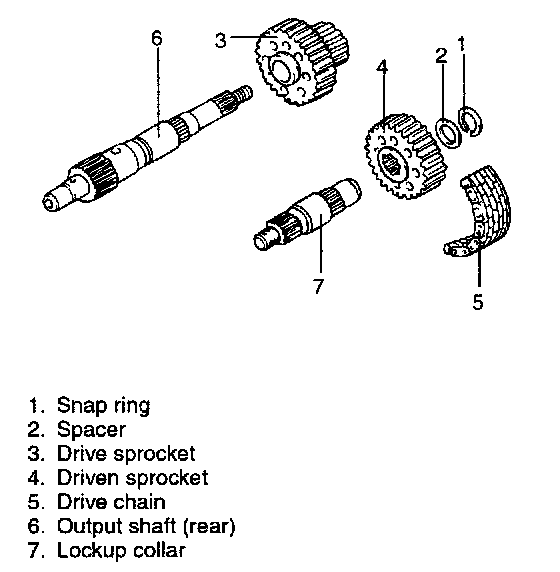

CHAIN DRIVE1. Remove snap ring and spacer from output shaft (front).
2. Together, slide drive sprocket, driver sprocket and drive chain from output shafts (rear and front). Separate sprockets and chain when out of assembly.
1. Remove snap ring and spacer from output shaft (front).
2. Together, slide drive sprocket, driver sprocket and drive chain from output shafts (rear and front). Separate sprockets and chain when out of assembly.
