Lock Shift

LOCK SHIFT

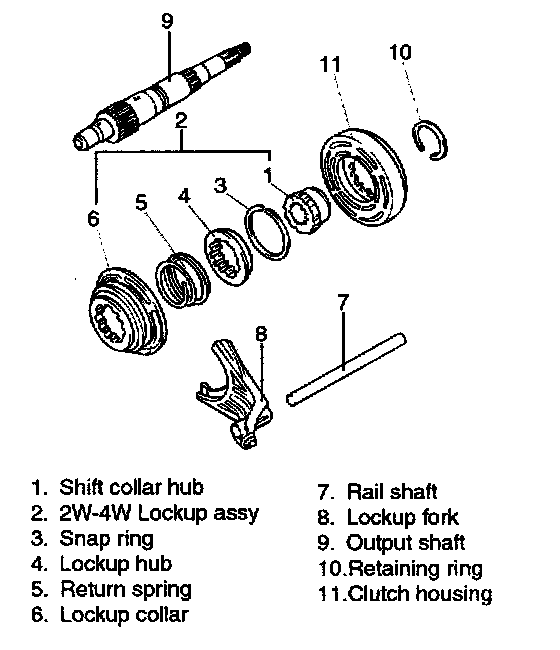

1. From electric shift only, remove retaining ring and slide clutch housing from shift collar hub.
2. Remove shift collar hub from output shaft.
3. Together, slide 2W-4W lockup assembly and lockup fork from output shaft and rail shaft. Separate assemblies and remove rail shaft.
4. To disassemble 2W-4W lockup assembly, remove snap ring, lockup hub and return spring from lockup collar.





5. One-piece, plastic lockup fork replaces earlier fork assembly with metal fork and separate roller parts.
