Reduction Shift

REDUCTION SHIFT

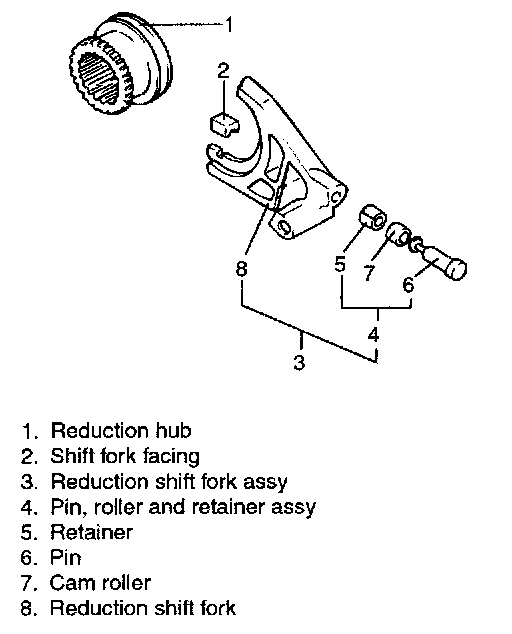

1. Remove reduction hub and reduction shift fork assembly from transfer case.
2. Remove two facings from shift fork assembly.





3. Disassemble fork assembly only if parts replacement is required.
Cut plastic retainer to remove, freeing pin and cam roller.
