Case Assembly

CASE ASSEMBLY

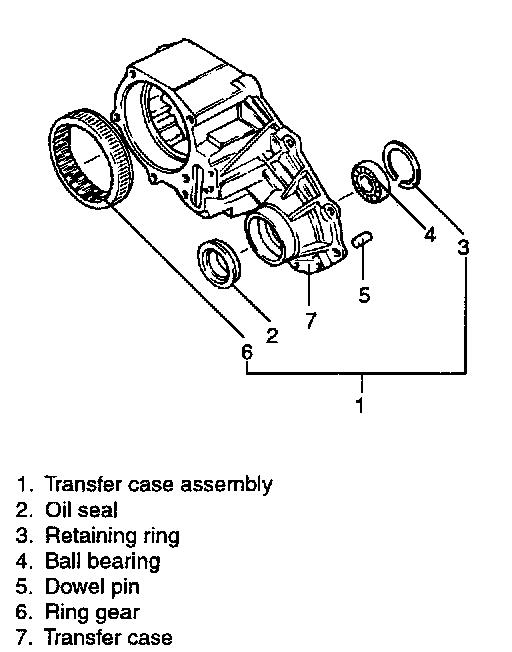

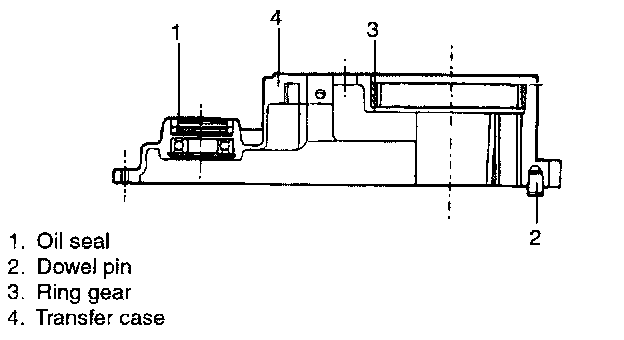

1. If ring gear was removed for replacement, align serrations on OD of new ring gear with those in transfer case. Press in ring gear, chamfered end first. Make sure gear is not cocked and is firmly seated in case.
2. If removed, press two new dowel pins into case.
3. Press in ball bearing to bottom in transfer case and install retaining ring.








4. Position new oil seal and press in to seat seal flange against transfer case.
