Rear Door Window Regulator: Service and Repair

Notice: There is no stand alone Rear Door Window Regulator article authored by the manufacturer. This information was extracted from the Rear Door Removal article.

Rear Door Window Regulator Removal and Installation

1. Disconnect negative battery cable.
2. Remove door inner handle cover.




1. Remove door inner handle screw (1).
2. Remove door inner handle cover.

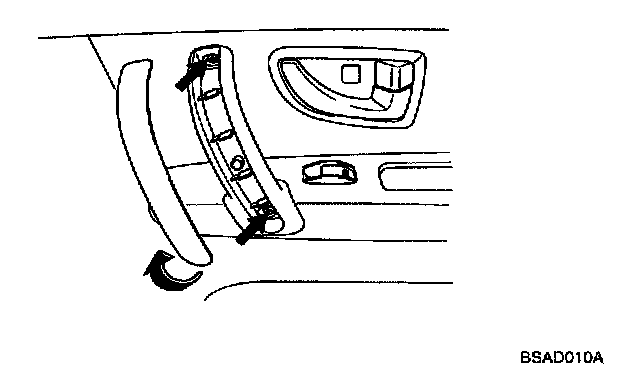

3. Remove assist grip cover.
1. Remove assist grip cover.
2. Remove screws (2).

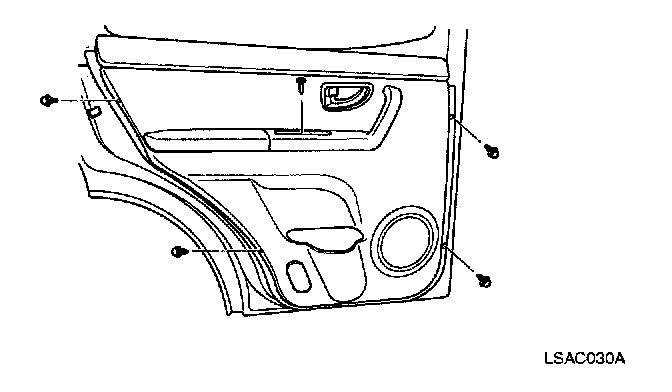

4. Remove door trim.
1. Remove door pull handle screw (1).
2. Remove door trim fasteners (4).
3. Disconnect electrical connector.




5. Remove door inner handle and door pull handle bracket.

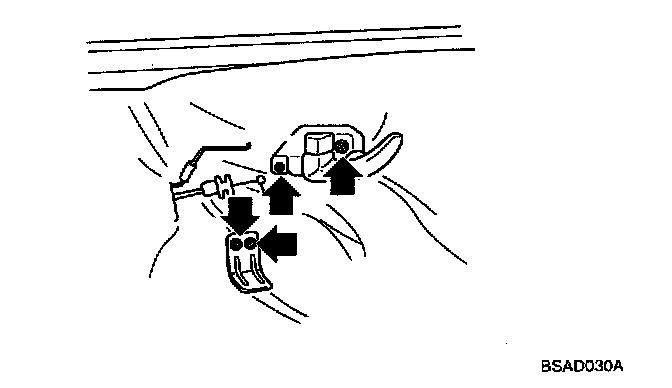

1. Remove door lock rod.
2. Remove door inner handle screws(2).
3. Remove door pull handle bracket screws (2).

6. Remove door speaker.




1. Remove door speaker screws (3).
2. Disconnect electrical connector.

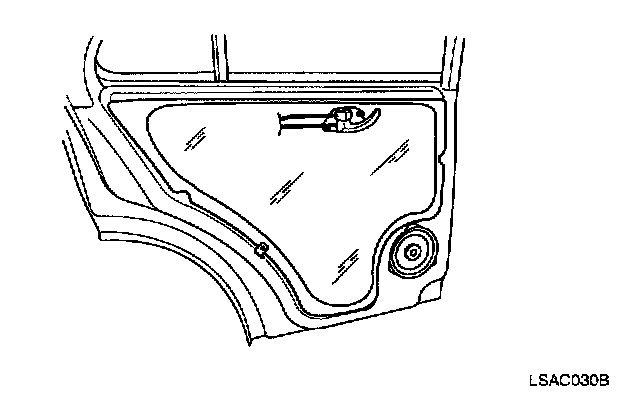

7. Remove door screen.

NOTE: Peel door screen off carefully so that it can be reused.

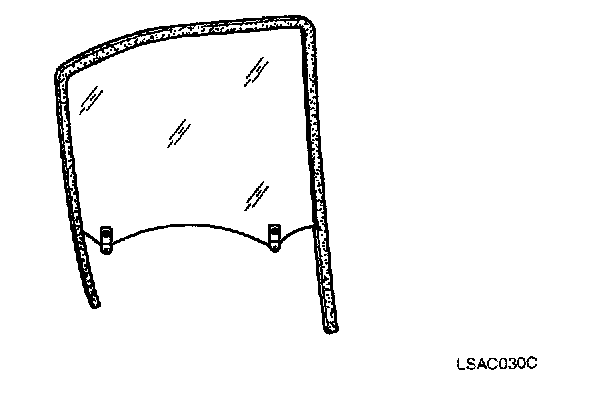

8. Remove window glass run channel.

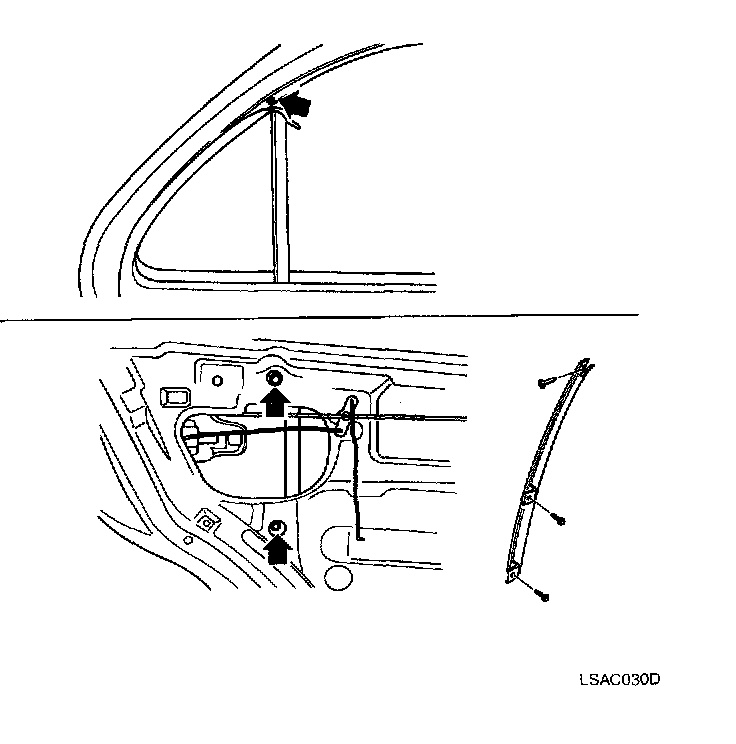

9. Remove window glass guide.




1. Remove window glass guide (front) bolts (2) and screw (1).

Tightening torque: 8 - 12 N.m (0.8 - 1.2 kg.m, 6 - 9 lb.ft)




10. Remove fixed glass.
11. Remove window glass.
1. Reconnect power window switch connector.
2. Connect negative battery cable.
3. Turn ignition switch "ON" and position window glass grip bolt access hole.
4. Turn ignition switch "OFF".

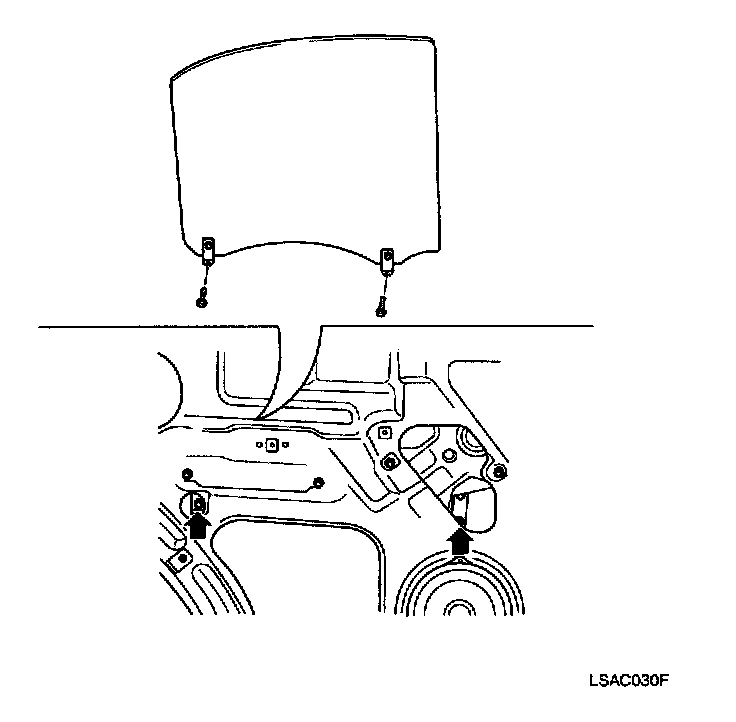

5. Remove window glass grip bolts (2).

Tightening torque: 8 - 12 N.m (0.8 - 1.2 kg.m, 6 - 9 lb.ft)

6. Disconnect negative battery cable.

12. Remove window regulator assembly.

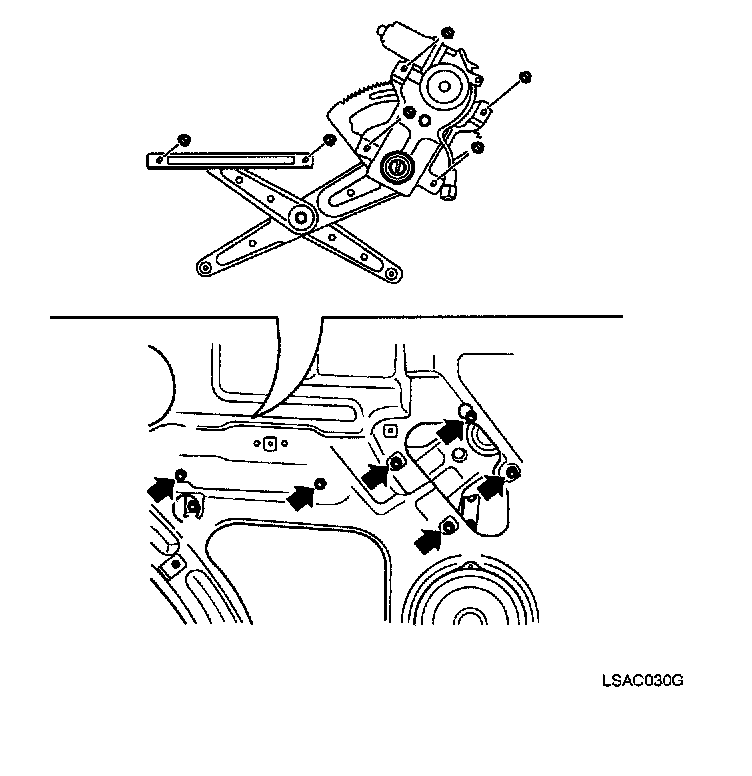

1. Remove window regulator nuts(6).

Tightening torque: 4 - 6 N.m (0.4 - 0.6 kg.m, 3 - 4 lb.ft)

2. Disconnect electrical connector.

13. Installation is the reverse of removal.
