Windshield Washer Motor: Testing and Inspection

INSPECTION

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water

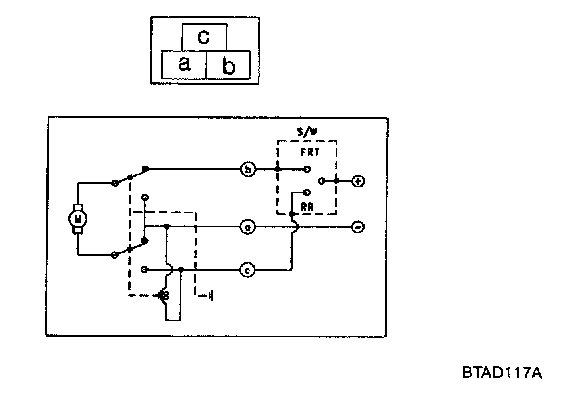

2. Apply the battery voltage to the terminal a and ground the terminal b or c to see that the washer motor runs and water sprays from the front or rear nozzles.




3. Check that the motor operates normally
