Blower Speed Controller

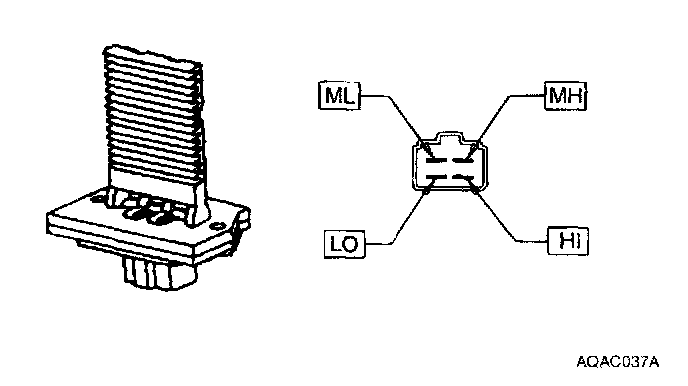

BLOWER SPEED CONTROLLER CHECK

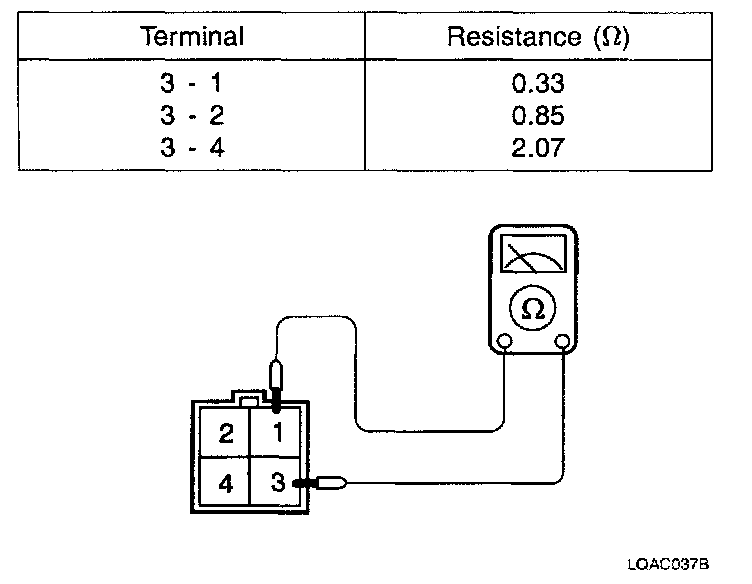

1. Check for continuity and resistance between terminals.
