Transfer Drive Gear
TRANSFER DRIVE GEAR DISASSEMBLY 1.
Loosen the lock nut caulking.
2.

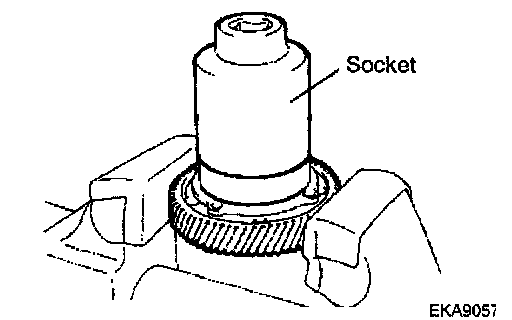

Remove the lock by using socket.
REASSEMBLY 1.
Apply ATF to the new lock nut and tighten to the specified torque. And loosen 1 turn and tighten to the specified torque again
2.

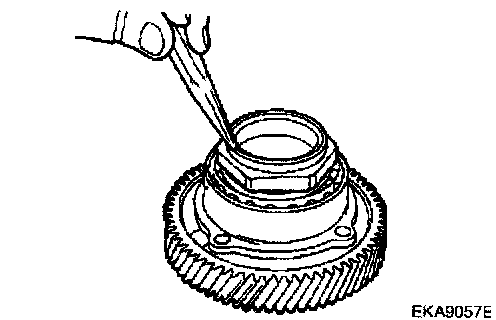

Caulk the lock nut by using punch.
