Second Brake End Play Adjustment

SECOND BRAKE END PLAY ADJUSTMENT

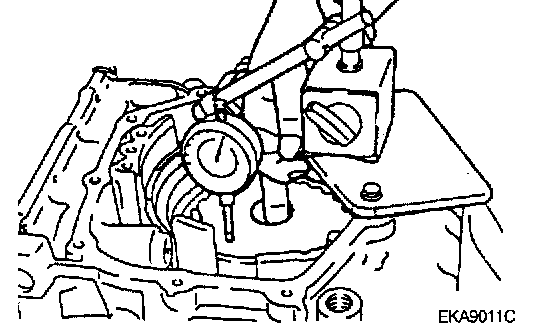

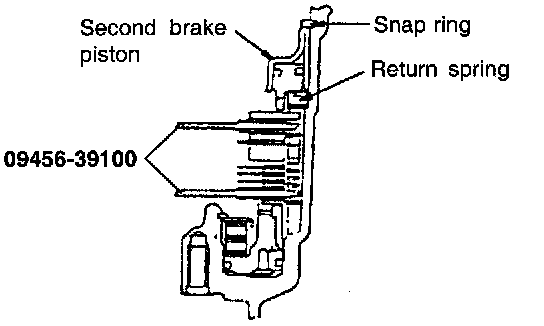

Replace the pressure plate of the second brake with the special tool, and then install the brake disc and brake plate as shown in the image. Install the return spring, second brake piston and snap ring.
Standard value: 0.79 - 1.25 mm
