Home >> Kia >> 2004 >> Sorento V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Common Connector >> X-13 - X-19

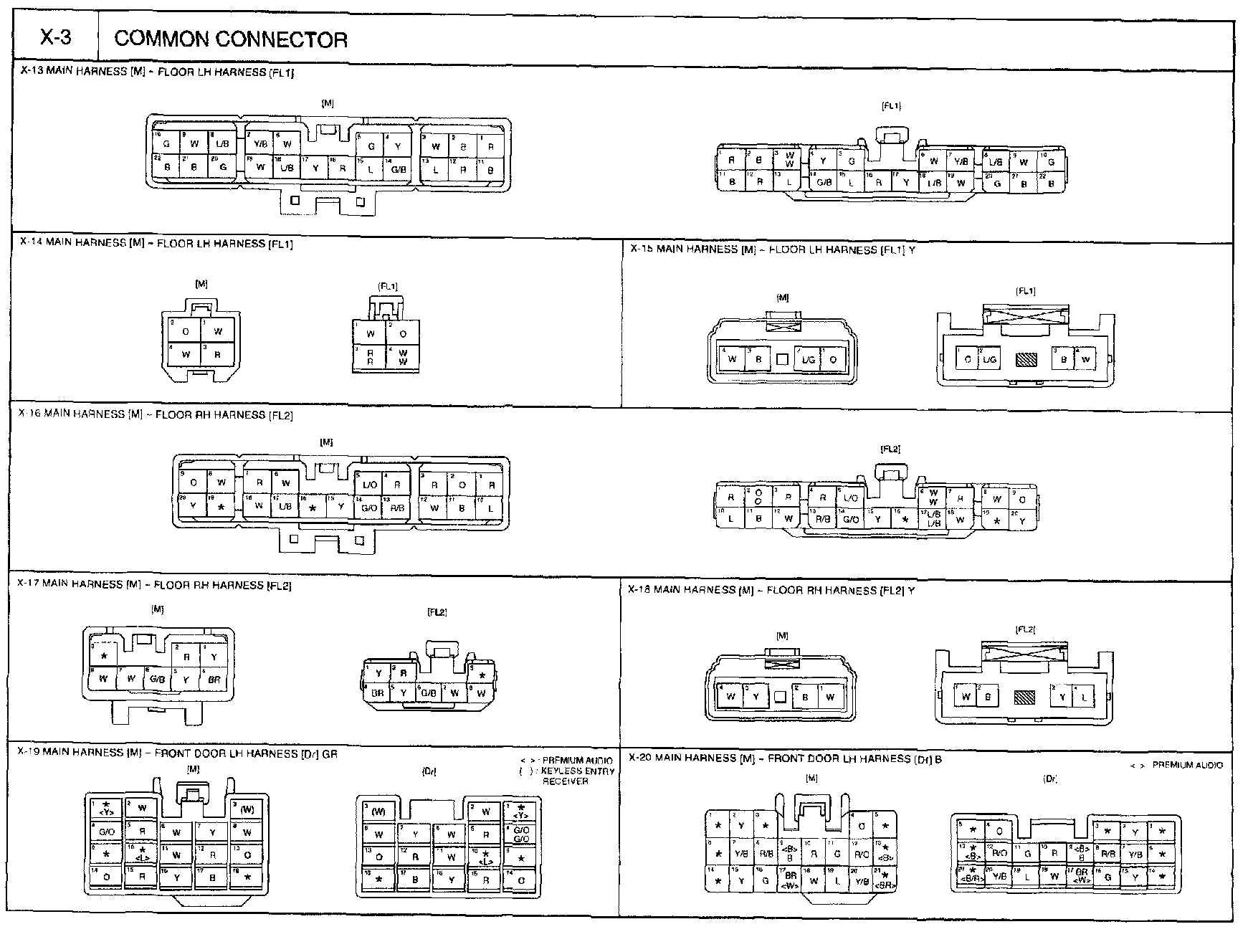

X-13 - X-19

X-13 - X-19:
