Manufacture's Scan Tool

CHECK PROCEDURES

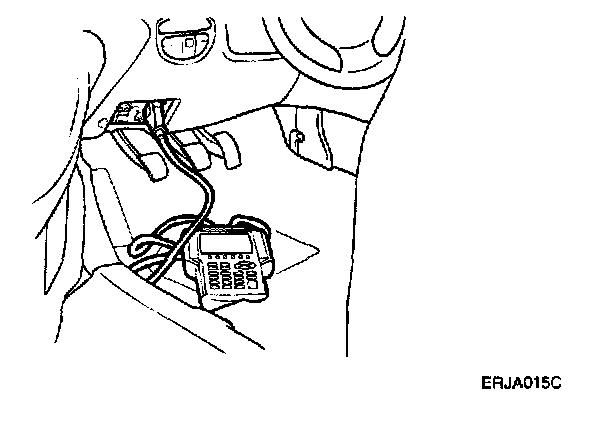

1. Connect the Hi-Scan Pro to the vehicle data link connector located underneath the dash panel.
2. Turn the ignition key to "ON" position and turn on the Hi-Scan Pro.
3. Check for diagnostic trouble codes.
4. If a fault code is found, then replace the appropriate component. Never attempt to repair the component.




5. If the Hi-Scan Pro finds that a component of the system is faulty, there is a possibility that the fault is not in the components but in the SRS wiring or connector.
