Overdrive Brake

OVERDRIVE BRAKE

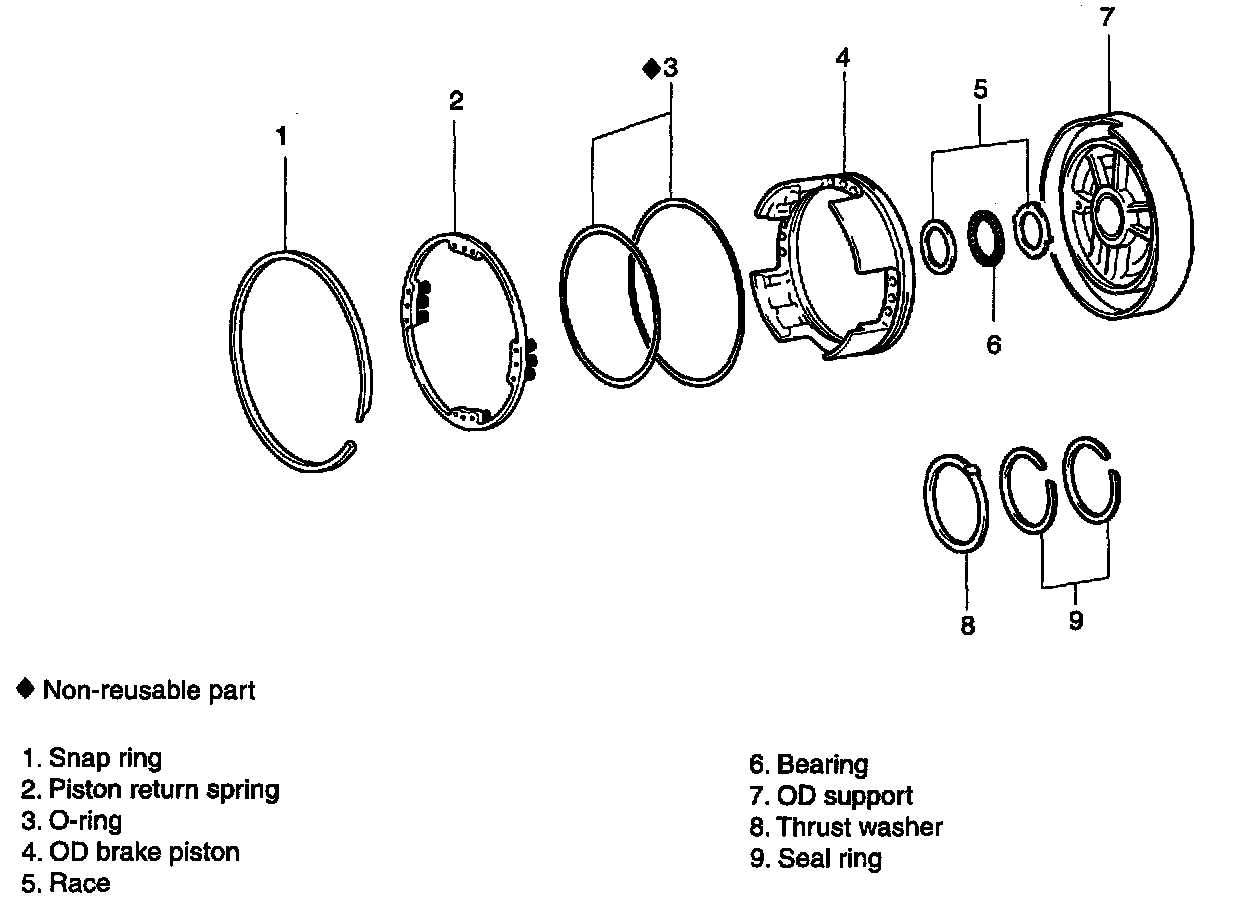

COMPONENTS

DISASSEMBLY





1. Remove the bearing and the race.





2. Remove the clutch drum washer.
3. Hold the OD brake piston so it is not slanted and apply compressed air into the passage to remove the OD brake piston.





4. Remove the OD brake piston.





5. Remove the oil seal ring.

REASSEMBLY





1. Install the oil seal ring.





2. Install the overdrive brake piston.





3. Install the return spring.





4. Install the clutch drum washer onto the OD support.





5. Install the race.
