Removal

REMOVAL
1. Remove the battery (-) terminal.

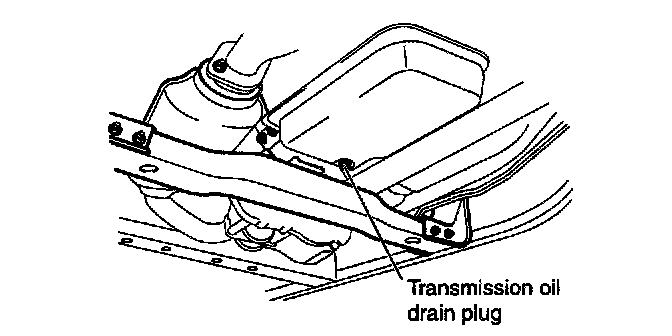

2. Drain the automatic transmission fluid.
3. Remove the control cable.
4. Remove the under cover.

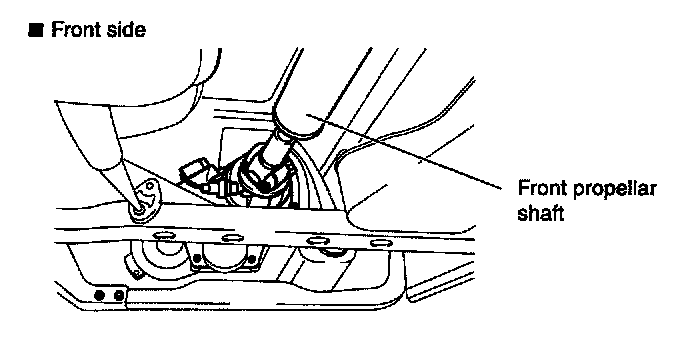

5. Remove the front propeller shaft. (4WD)





6. Remove the front muffler and the heater protector.





7. Remove the transfer case connector. (4WD)

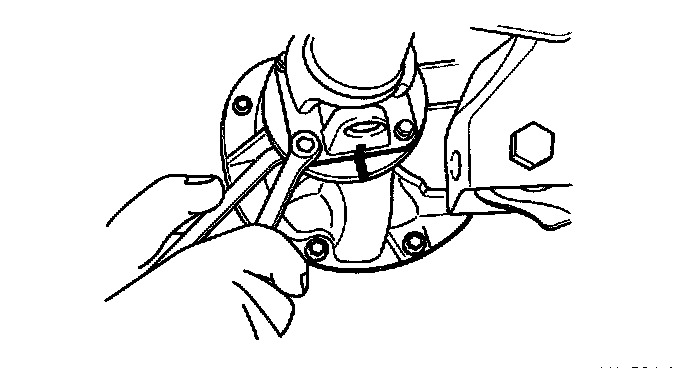

8. Remove the rear propeller shaft.

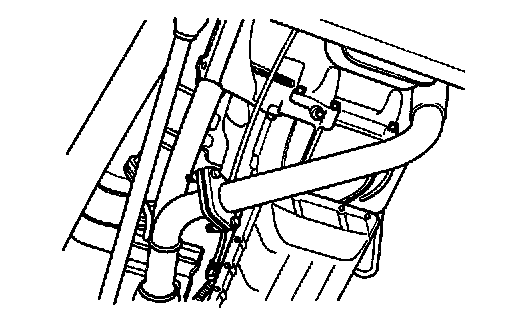

9. Remove the oil cooler pipe.

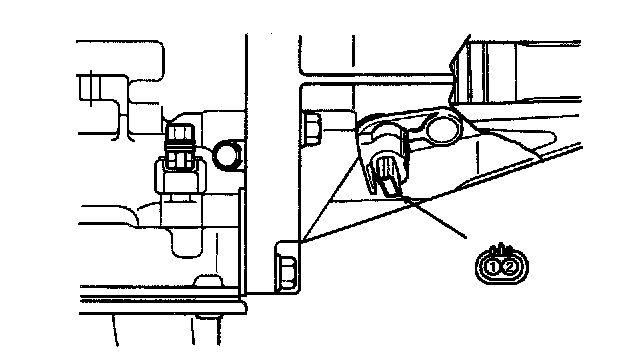

10. Remove the speed sensor connector.
11. Remove the back-up lamp switch connector.





12. Remove the starter motor.

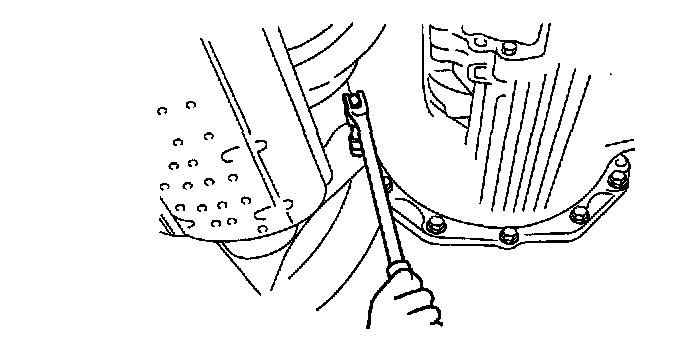

13. Remove the transmission mounting bolt.

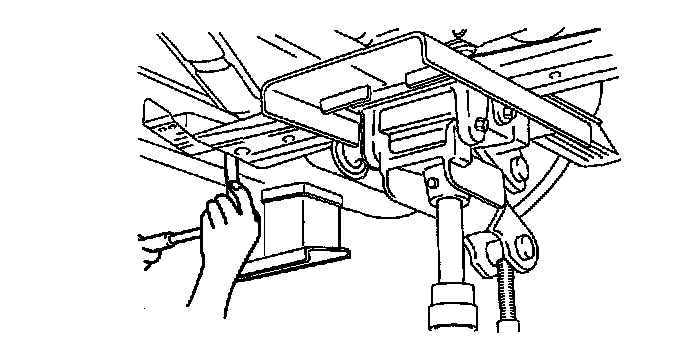

14. Support the transmission on the sack.





15. Remove the transmission assembly.
