Output Input Speed Sensor
OUTPUT INPUT SPEED SENSOR 1.

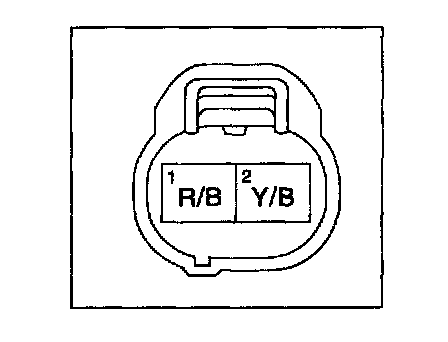

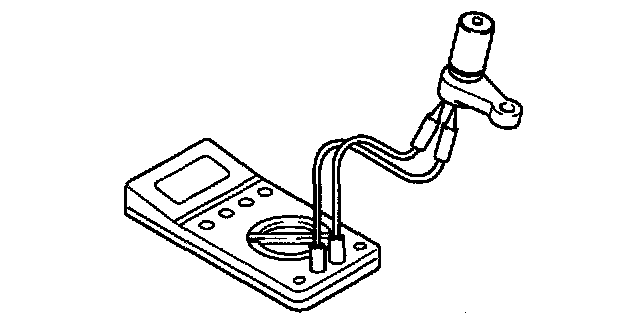

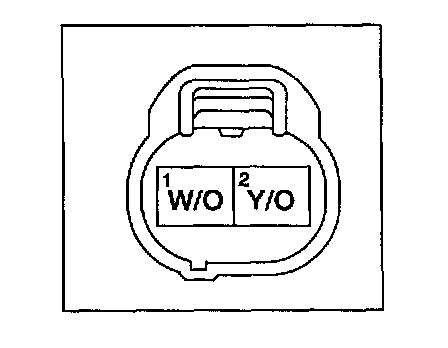

Remove connector of output or input speed sensor, and inspect resistance between terminals.
< NG > Replace input, output speed sensor.
CAUTION: 1.

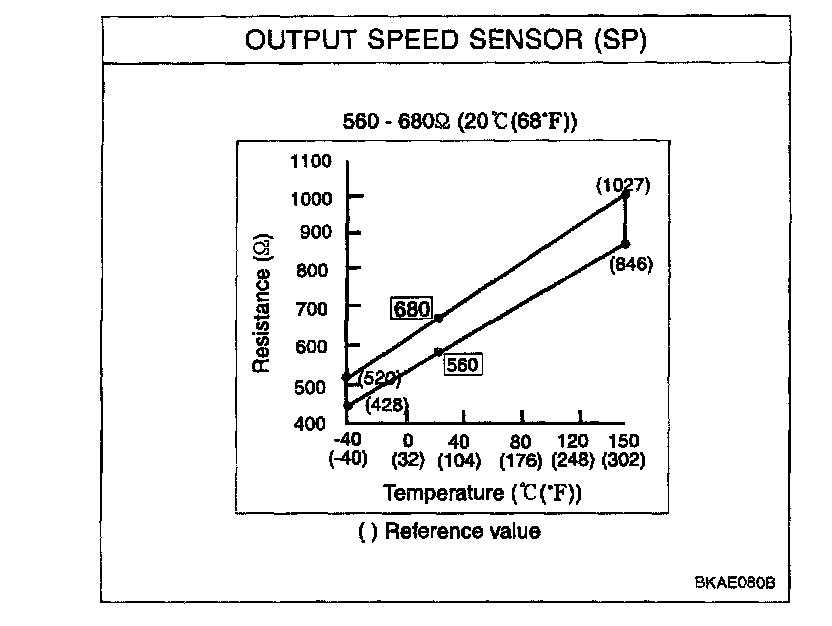

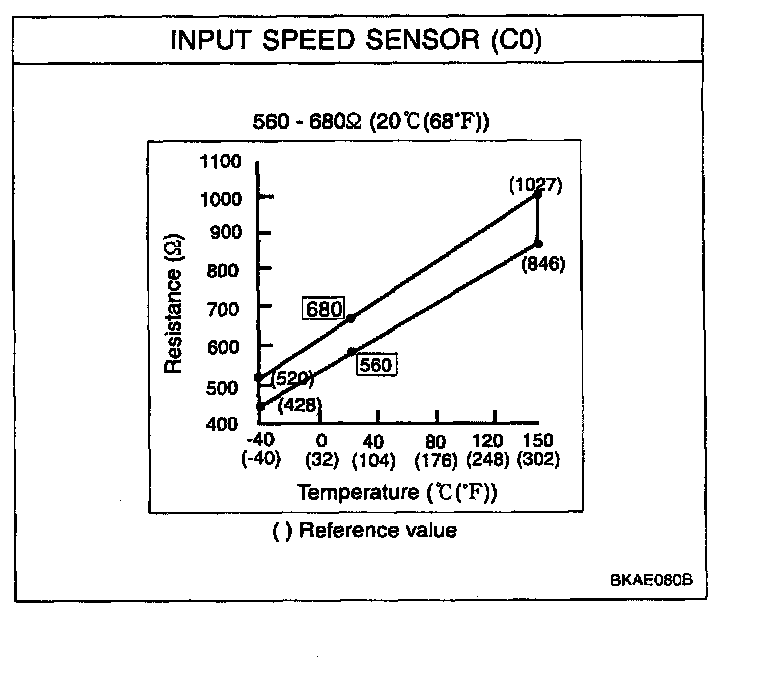

Make sure to inspect resistance again at
20°C (68°F) when resistance differ from standards except
20°C (68°F).
2.
It might become infinity ohm when inspect resistance at higher temperature.
