Removal

REMOVAL
1. Remove the battery (-) terminal.
2. Remove the knob and the control lever.
3. Raise the vehicle.
4. Remove the transmission under cover.
5. Remove the clutch release cylinder.





6. Remove the front propeller shaft (4WD vehicle).





7. Remove the front muffler and the heater protector.





8. Remove the transfer case connector (4WD vehicle).

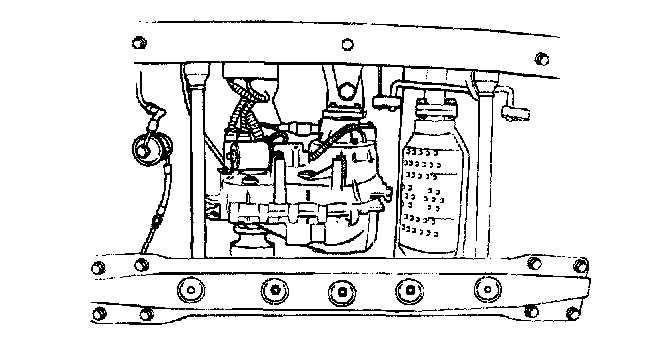

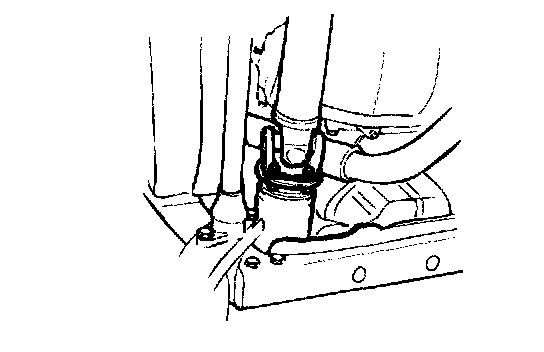

9. Remove the rear propeller shaft.

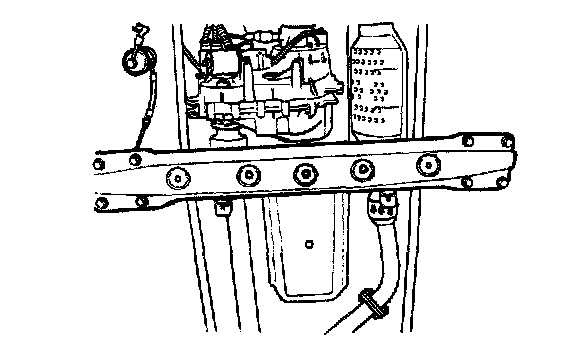

10. Support the transmission by the jack.





11. Remove the rear cross member.
12. Remove the transmission with transfer case (4WD vehicle).
