Shift Linkage: Service and Repair

MANUAL TRANSAXLE SHIFT CONTROL

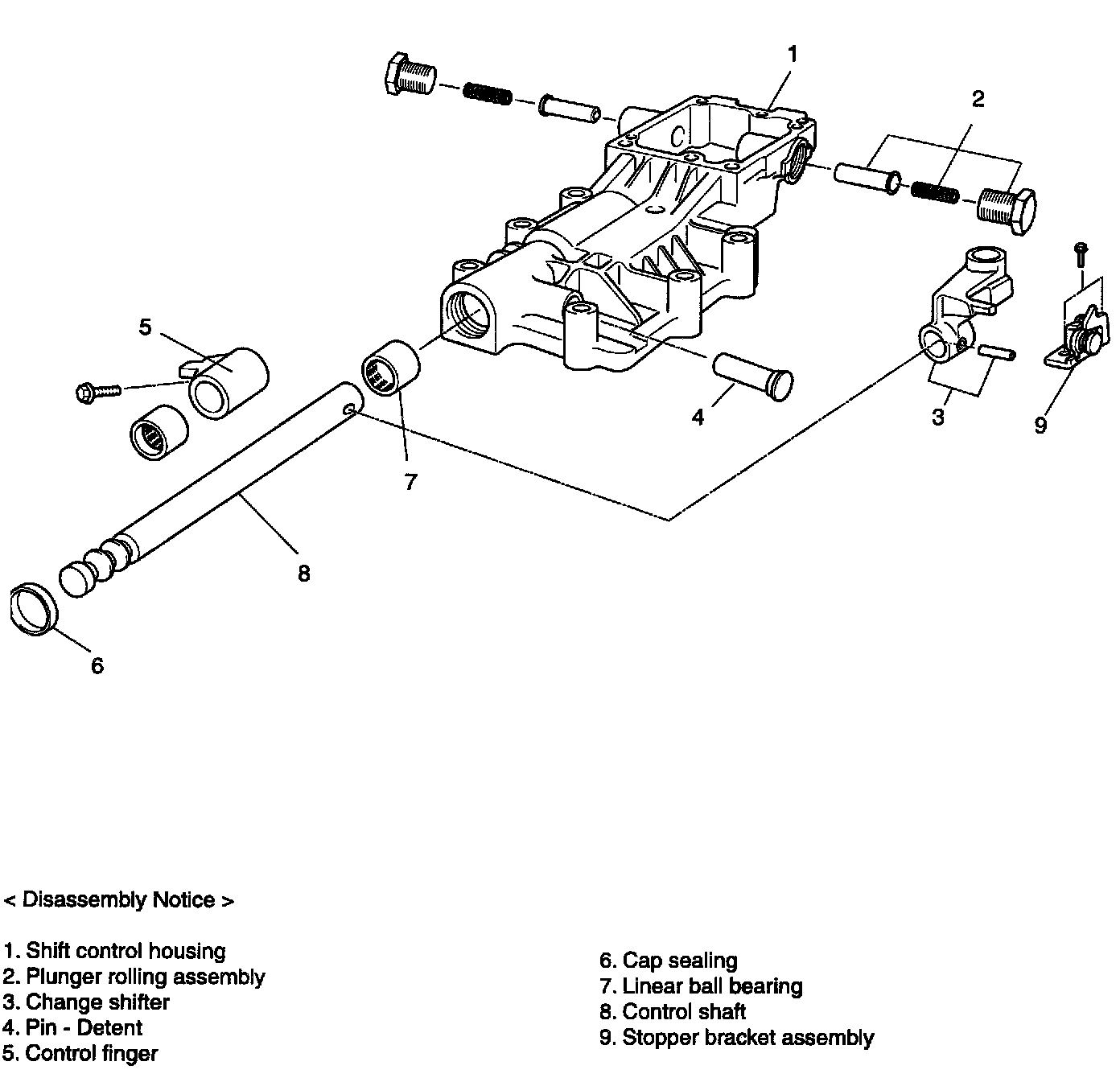

COMPONENTS

DISASSEMBLY

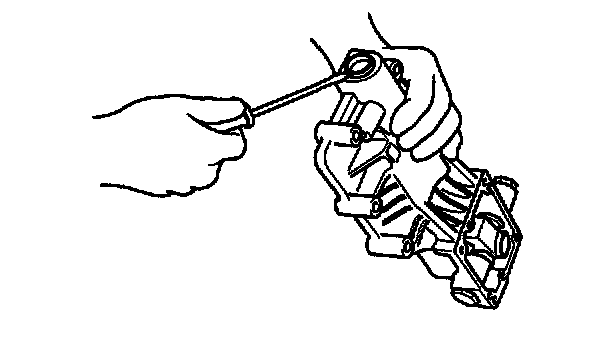

1. Remove cap sealing.

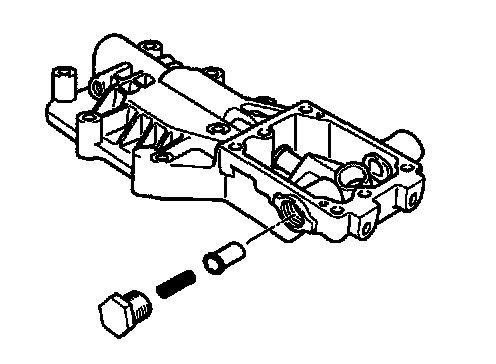

2. Remove both of plunger rolling assembly in shift control housing.

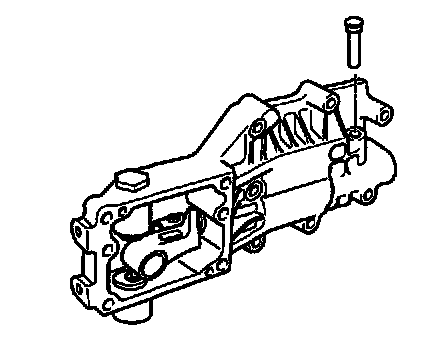

3. Remove pin-detent and change shifter.





4. Loosen the stopper bracket bolt.





5. Loosen the shift control finger bolt.

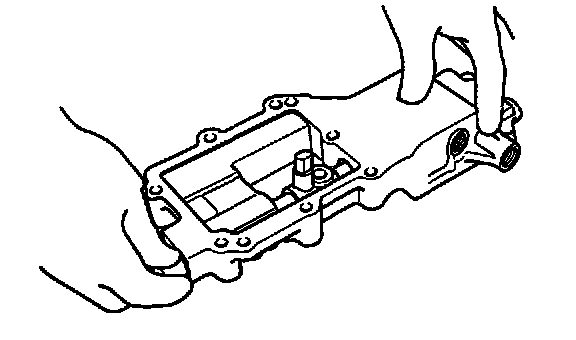

6. Remove the control shaft.
