Scan Tool Testing and Procedures

SELF-DIAGNOSIS PROCEDURE FOR EST (MANUAL)

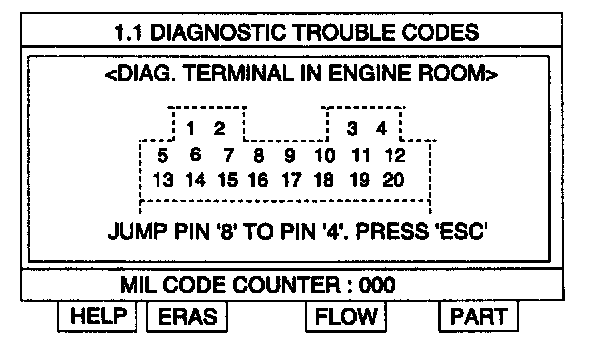

1. Connect a Hi-scan to the self-diagnosis connector on the engine room OBD connector. (the lower inside of crash pad in driver's side)
2. Turn the ignition ON.
3. Select and operate according to the instructions on the Hi-scan screen.
1) Select "KIA VEHICLE DIAGNOSIS".
2) Select "VEHICLE NAME".

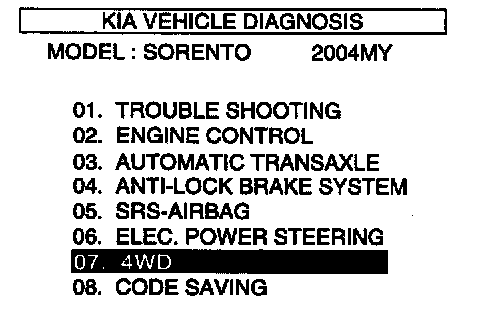

3) Select "4WD SYSTEM".

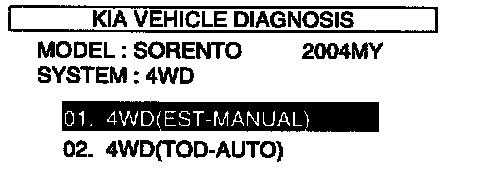

4) Select "4WD (EST-MANUAL)".

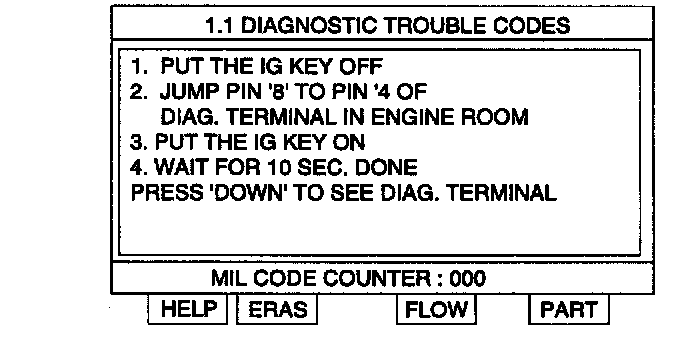

5) Select "01.DIAGNOSTIC TROUBLE CODES".

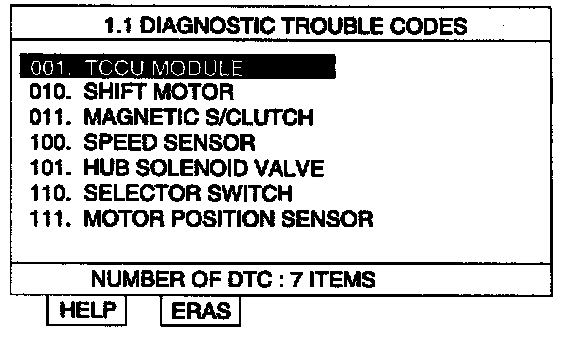

It shows diagnostic trouble code list.

ERASE THE DIAGNOSTIC TROUBLE CODES FOR EST
1. Select and operate according to the instructions on the Hi-scan screen.
1) Select "KIA VEHICLE DIAGNOSIS".
2) Select "VEHICLE NAME".
3) Select "4WD SYSTEM".
4) Select "4WD (EST-MANUAL)".








5) Select "01.DIAGNOSTIC TROUBLE CODES".

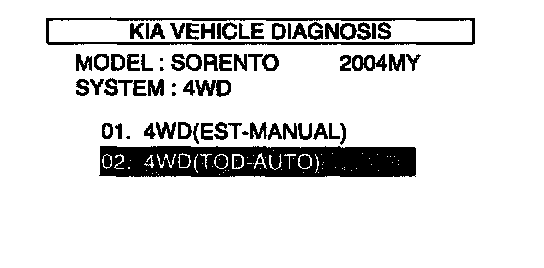

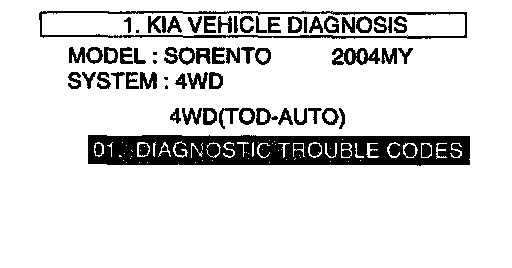

SELF-DIAGNOSIS PROCEDURE FOR TOD (AUTO)








1. Select and operate according to the instructions on the Hi-scan screen. (Refer to EST (MANUAL) procedures)
