Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2004
>>
Spectra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

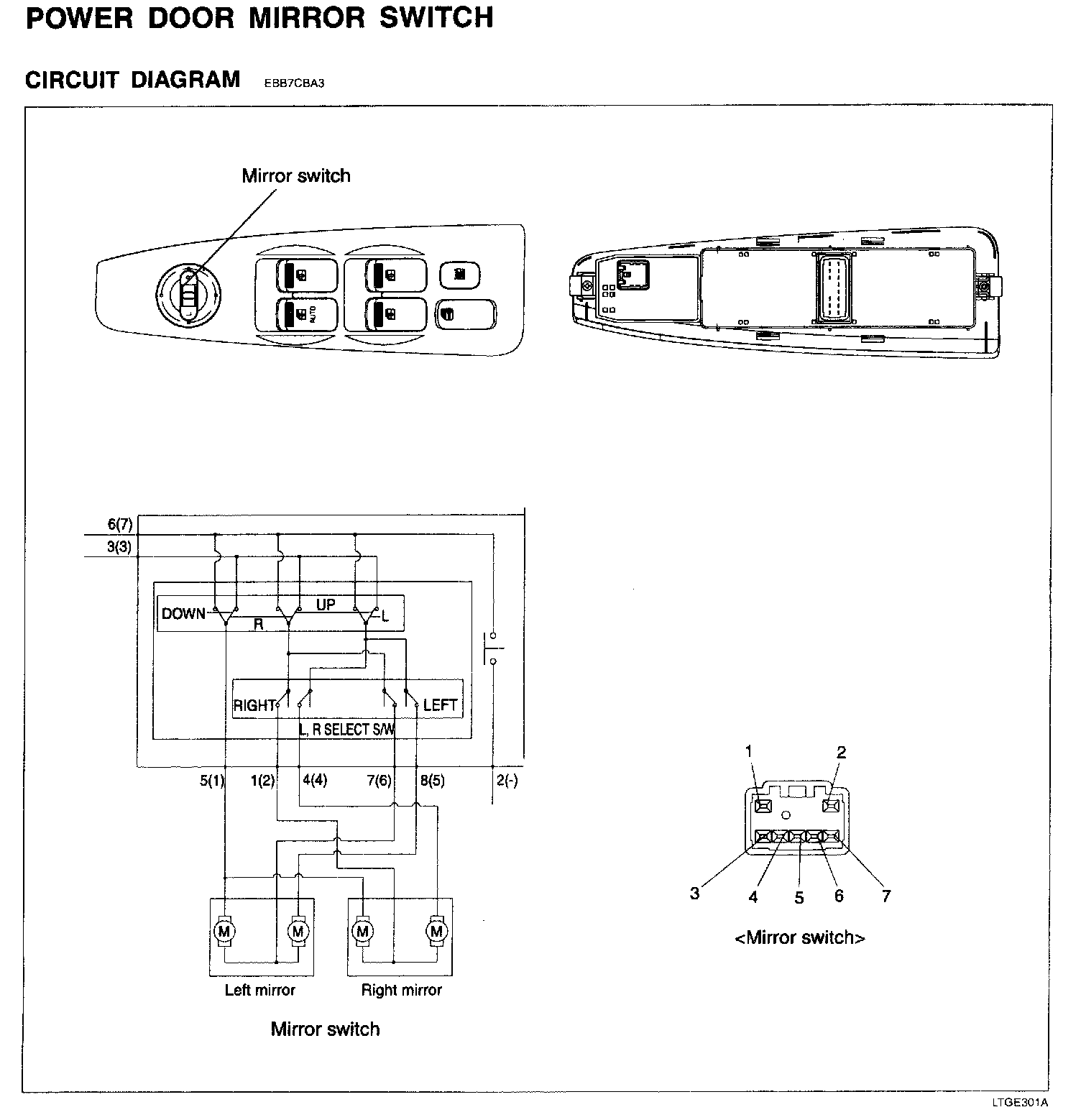

Power Door Mirror Switch - Circuit Diagram:
