Fuel Pump Relay: Service and Repair
REMOVALWARNING: Fuel is explosive. An empty fuel tank can still contain explosive gases. Supply adequate ventilation to the work area. Do not smoke and keep sparks and open flames away. Purge fumes from the tank as soon as possible.
1. Disconnect negative battery cable.
2. Remove rear seat cushion.
3. Disconnect fuel delivery module connector.
4. Remove three screws attaching access cover.
5. Remove rubber grommet and wires from access cover and remove access cover.
6. Disconnect two fuel hoses from fuel delivery module.

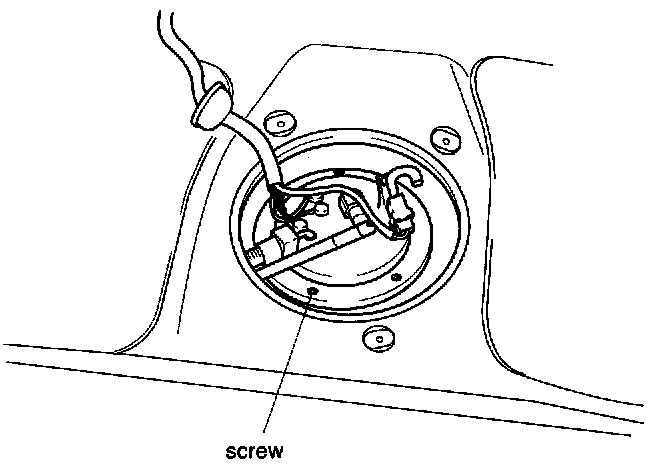

7. Remove six screws attaching fuel delivery module and remove fuel delivery module from fuel tank.
INSTALLATION
1. Install fuel delivery module and tighten six screws.
Tightening torque: 7.7 - 12.2 lb-ft (10.8 - 16.7 Nm, 1.1 - 1.7 kg-m)
2. Reconnect two fuel hoses to fuel delivery module.
3. Install rubber grommet and wire onto access cover.
4. Install access cover and tighten three screws.
Tightening torque: 7.7 - 12.2 lb-ft (10.8 - 16.7 Nm, 1.1 - 1.7 kg-m)
5. Reconnect one connector to fuel delivery module.
6. Position wires and secure to floor with tape.
7. Install rear seat cushion.
8. Raise vehicle.
9. Reconnect canister close valve connector.
10. Lower vehicle.
11. Connect negative battery cable.
