Valve Body

VALVE BODY

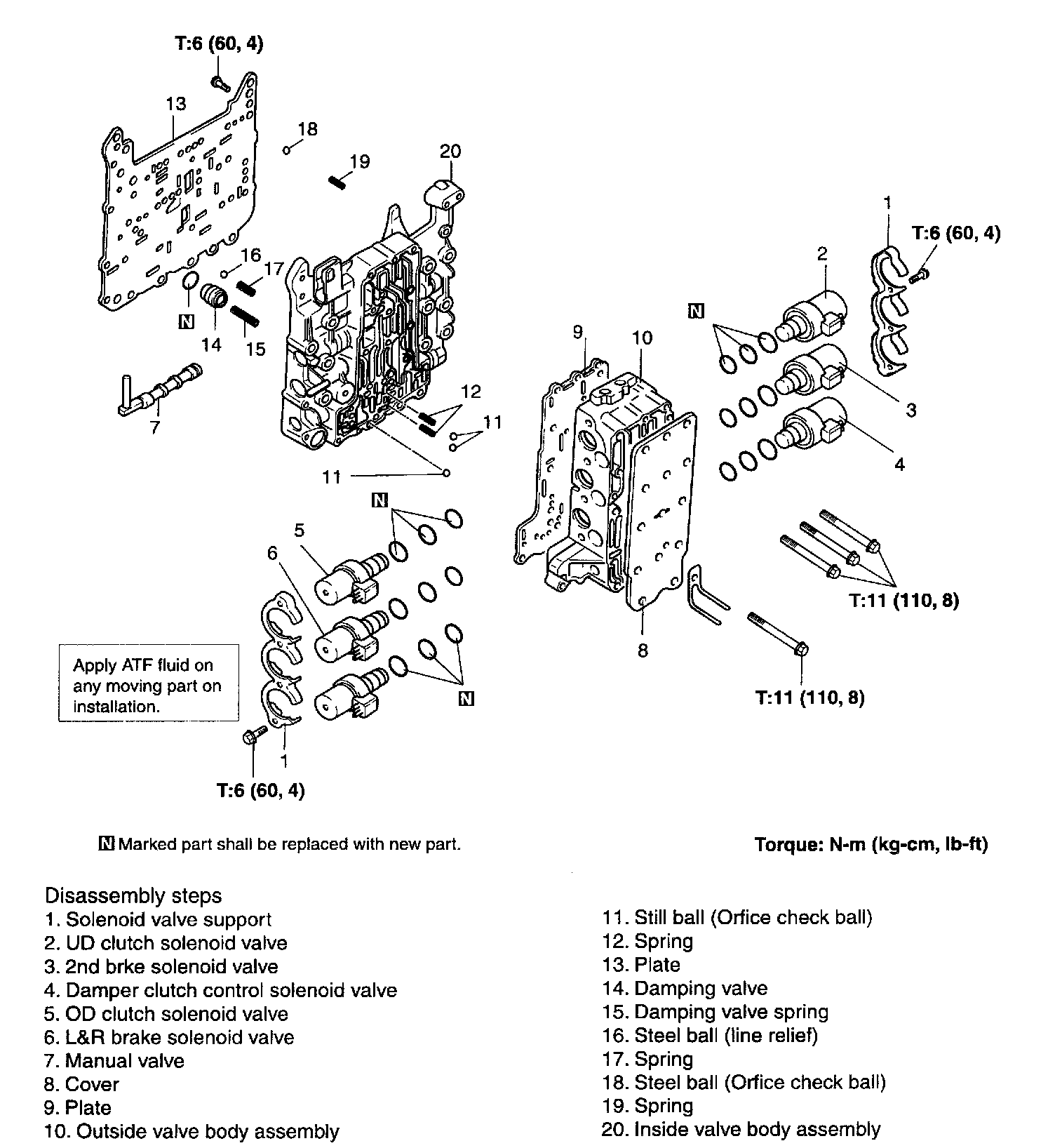

COMPONENTS A

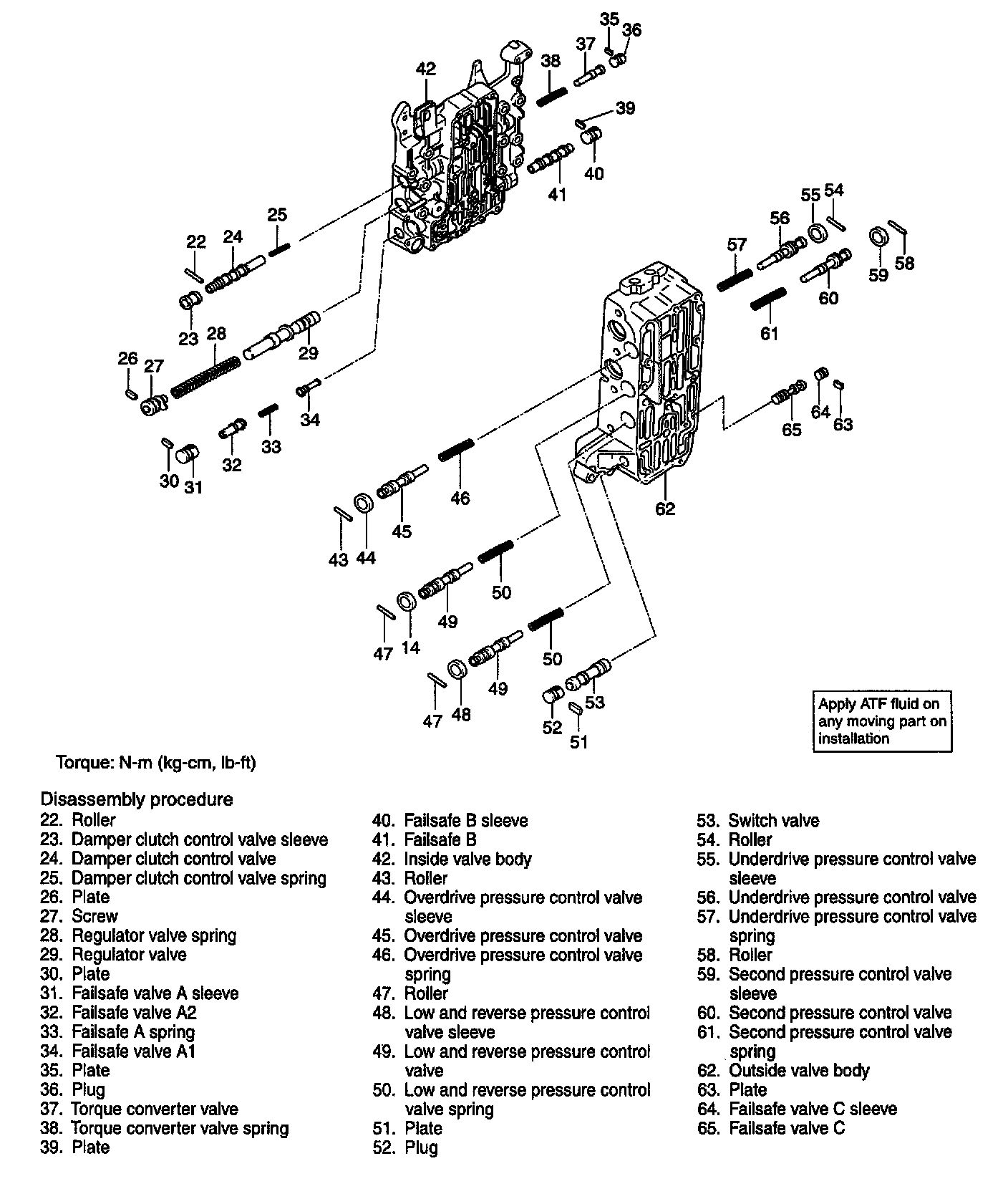

COMPONENTS B

DISASSEMBLY
1. Remove each solenoid valve. Mark each installation point with white paint or so.

REASSEMBLY

1. Install the spring/steel ball/damping valve/damping valve spring.

2. Install the spring/steel ball.

3. Install each solenoid valve.
1. Apply ATF or white Vaseline on the O-ring and assemble it caring not to damage it.
2. Remove the marking made in disassembly and install them.
