Brake Pedal Assy
>>
Service and Repair
>>
Components and Components Location
Components and Components Location

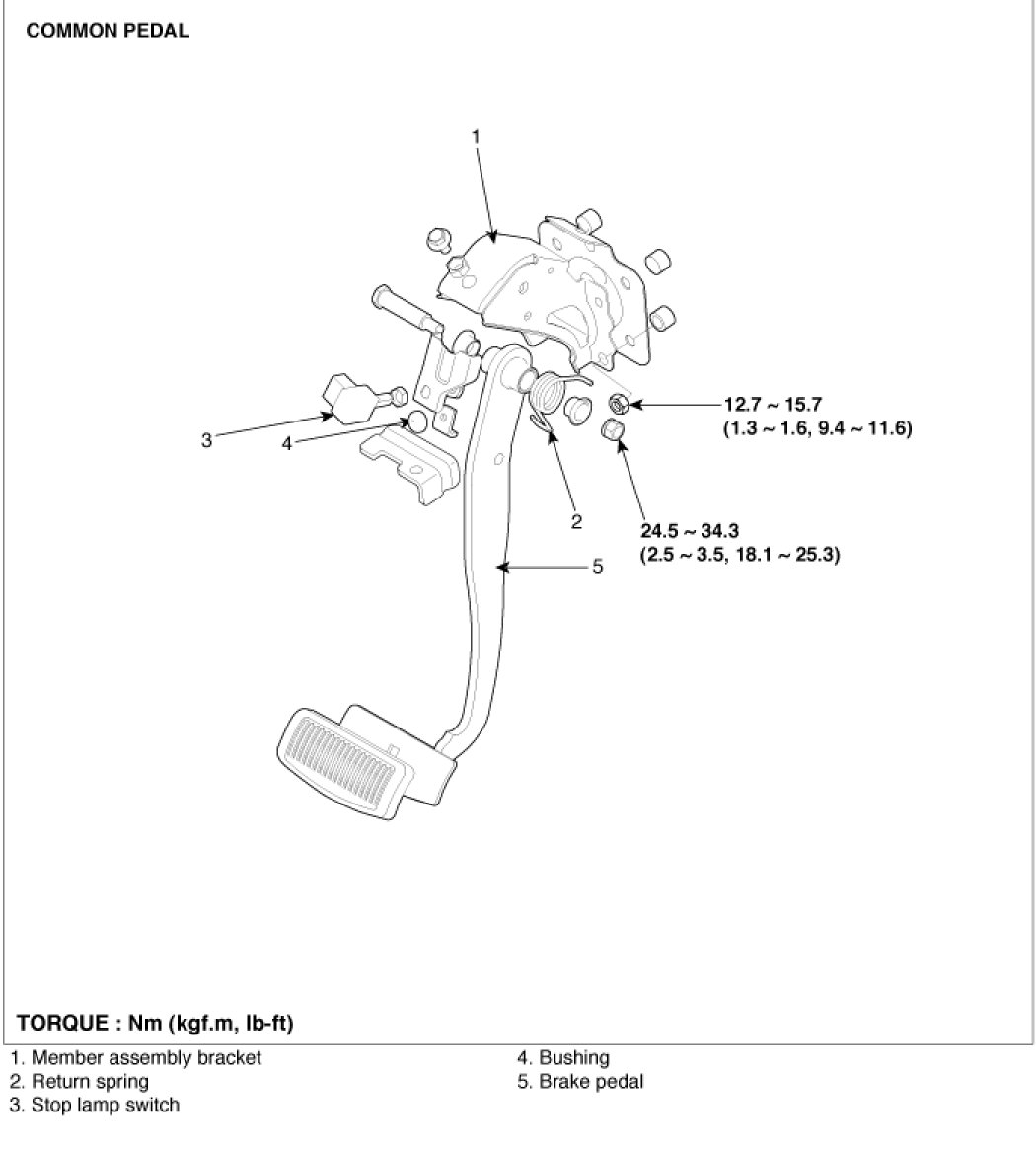

COMPONENTS(1)

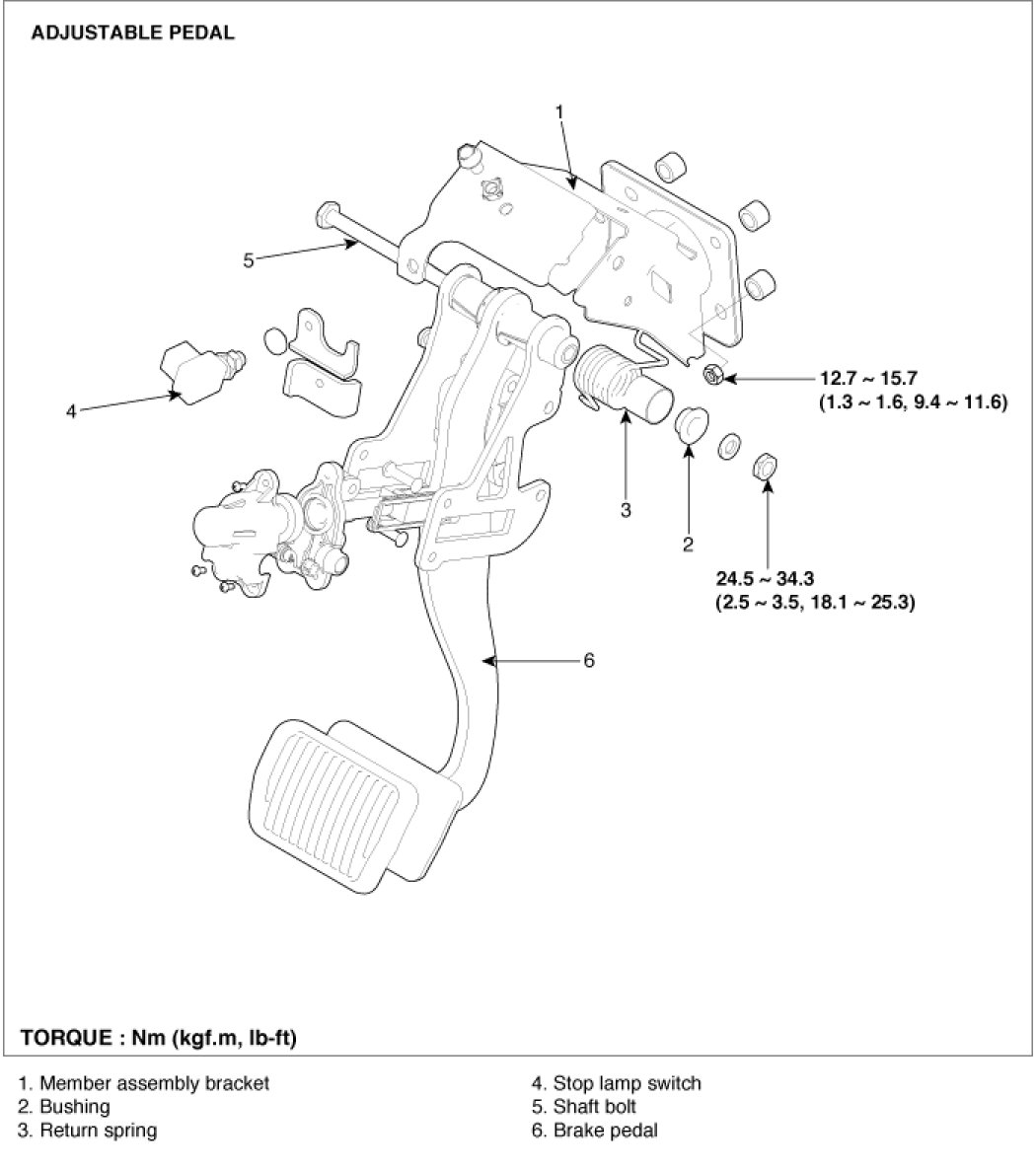

components(2)
