Symptom Related Diagnostic Procedures

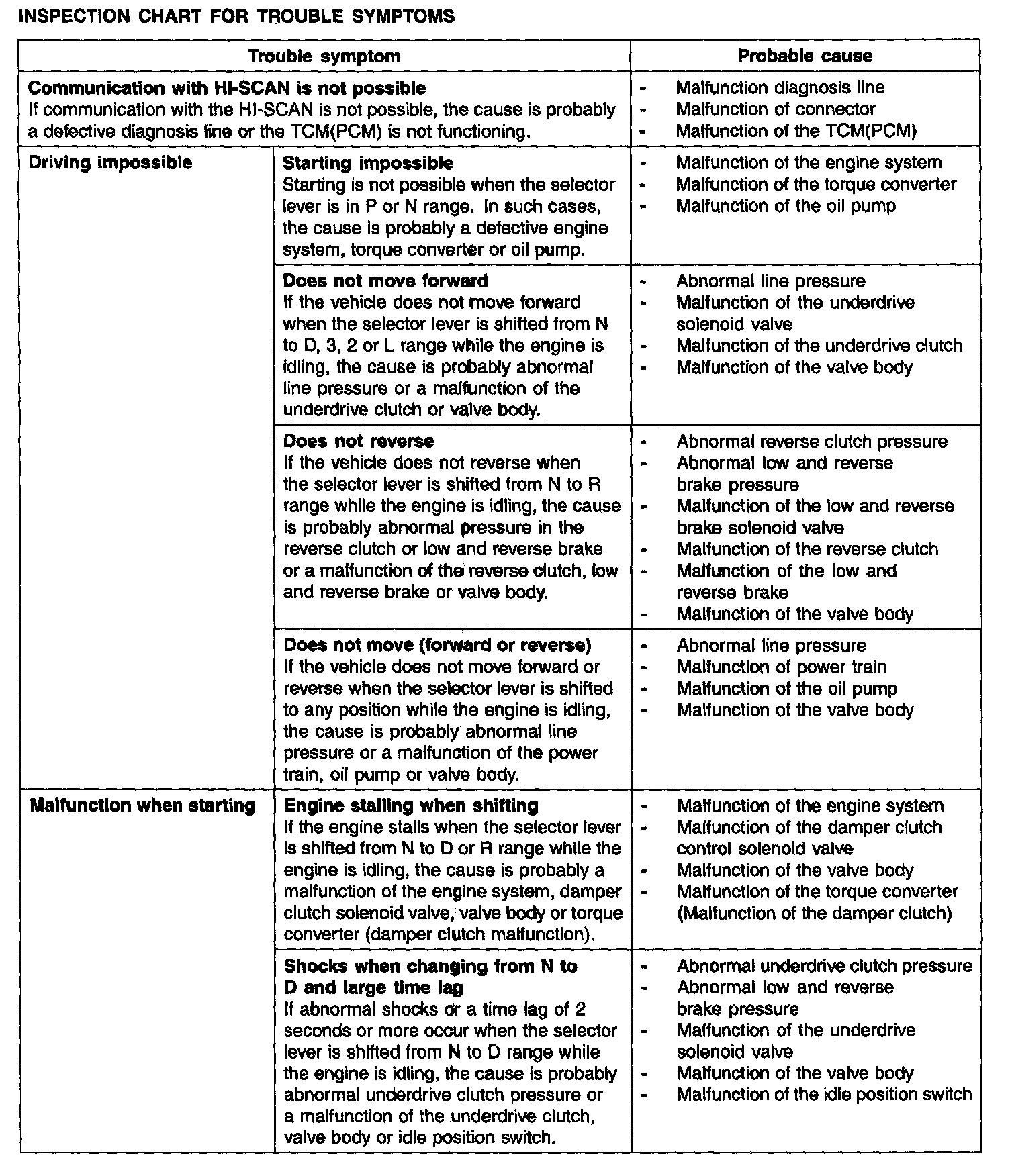

INSPECTION CHART FOR TROUBLE SYMPTOMS

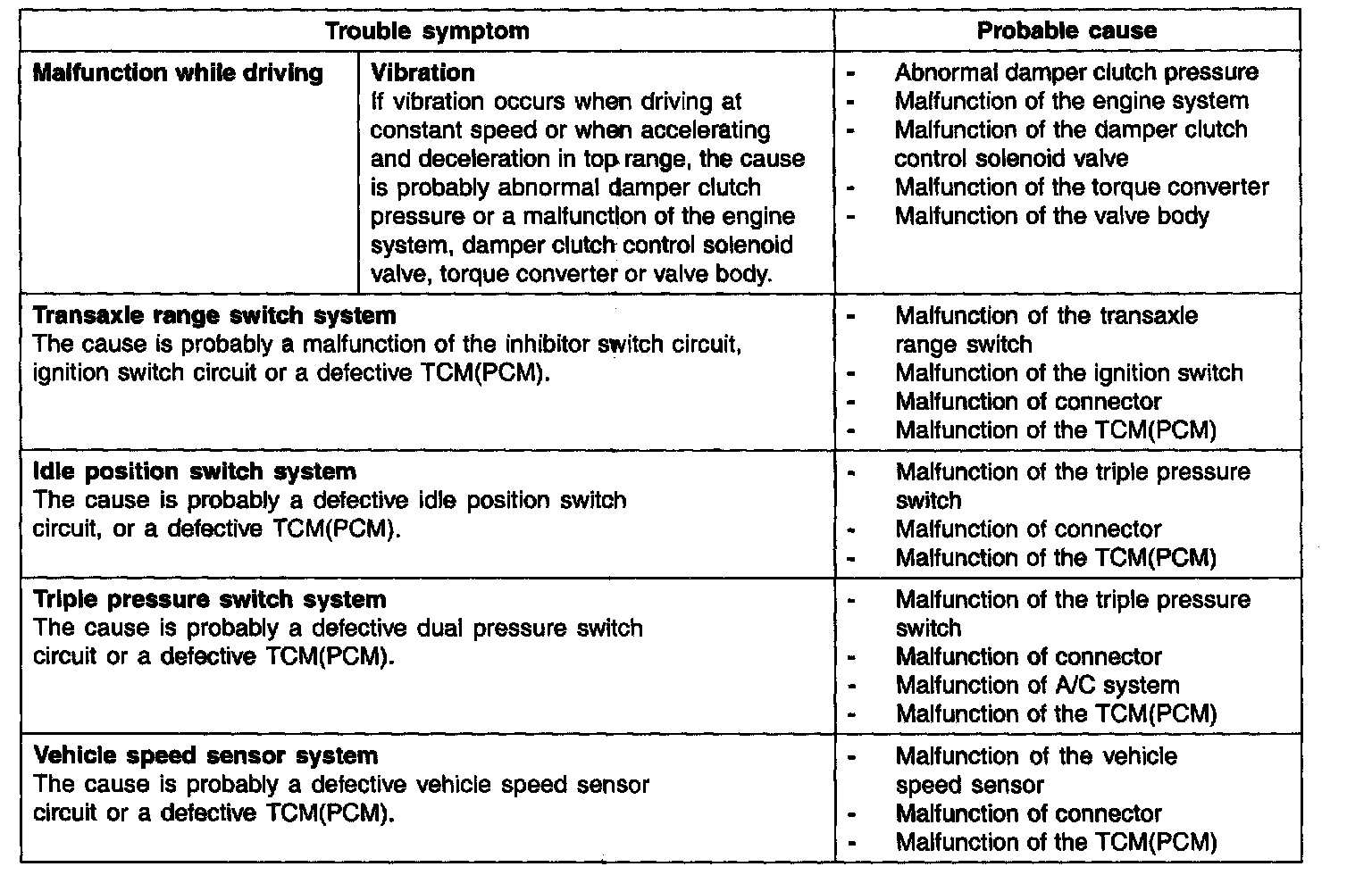

Inspection Chart For Trouble Symptoms (Part 1):

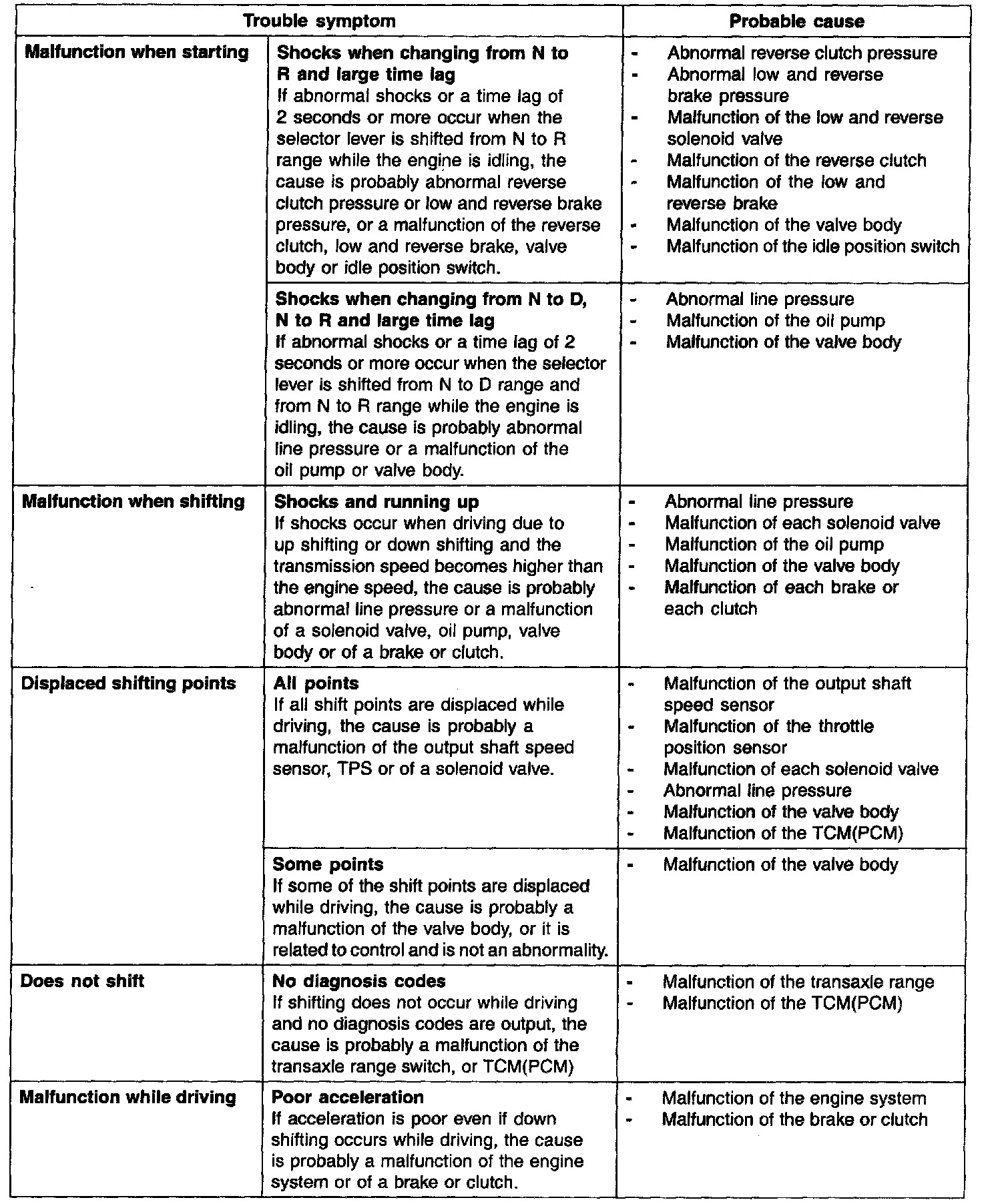

Inspection Chart For Trouble Symptoms (Part 2):
Inspection Chart For Trouble Symptoms (Part 3):
