Power Mirror Motor: Testing and Inspection
INSPECTION 1.

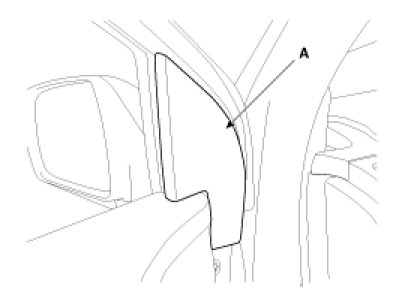

Remove the front door quadrant inner cover (A). Take care not to damage fixing clips.
2.

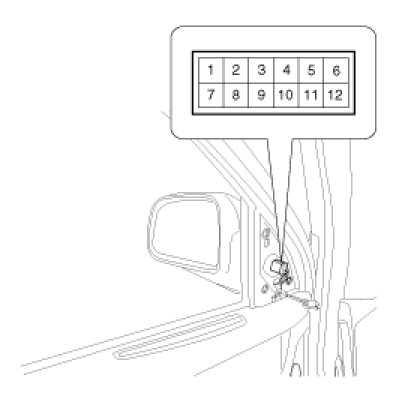

Disconnect the power door mirror connector from the harness.
3.

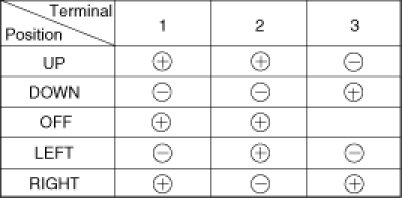

Verify that the mirror operates properly as shown in the table.

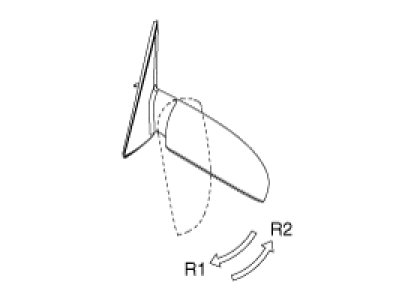

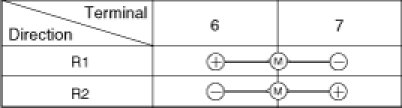

MIRROR HEATERMIRROR FOLDING
