Power Seat Switch: Service and Repair
REPLACEMENT 1.
Disconnect the negative(-) battery terminal.
2.
Remove the door trim panel .
3.

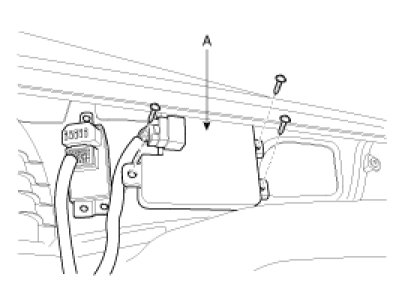

Remove the switch connector (16pin) from the wiring harness, And then loosen the mounting screws (3EA).
4.
Remove the switch from the front door panel.
5.
Installation is the reverse of removal.
