Secondary Seat










REPLACEMENT

SECONDARY SEAT

REMOVAL
1. Slide the seat to the rearward.
2. Back seat folding.




3. Remove the seat assembly (B) after pressing the lever(A).





INSTALLATION
1. Back seat folding.




2. Slide the seat to the rearward.




3. Lift the back side of the seat.




4. Arrange the seat to the rear side of the strike by using the roller.

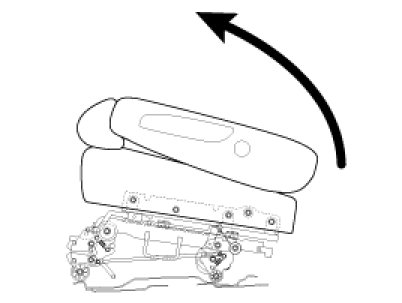

5. Turn the seat to the forward at an angle of about 81 degrees for locking between the plate and striker.

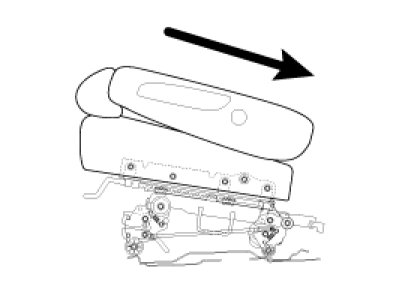

6. Turn the seat to the rearward for locking between the rear latch and striker.




7. Unfold the back of the seat.

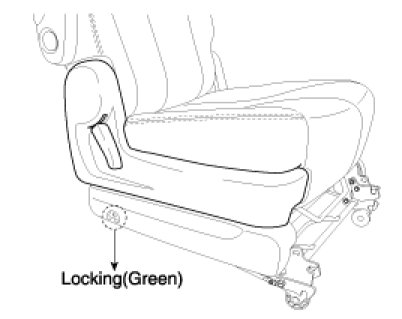

8. The leg cover hole color must be discolored to green.
