INSPECTION OF FRONT DISC BRAKE PAD

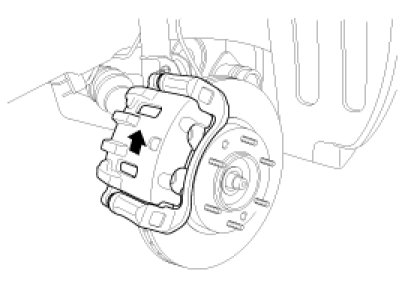

1. Check the brake pad thickness through the caliper body inspection hole.

Pad thickness Standard value : 10.5 mm ( 0.41 in) / Service limit : 2 mm (0.0787 in)

CAUTION:
a. If the pad thickness is out of specification, left and right pads must be replaced as a complete set.
b. When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
