Blower Motor Relay: Testing and Inspection

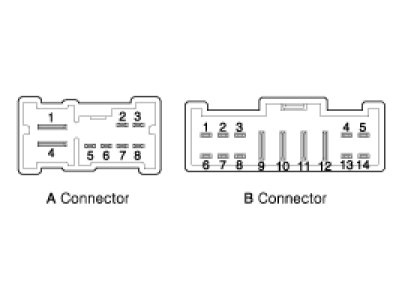

INSPECTION

1. There should be continuity between the NO.1 in the A and NO.10 in the B terminals when power and ground are connected to the NO.7 and NO.13 in the A terminals. (Passenger compartment relay box)
2. There should be to no continuity between the NO.1 in the A and NO.10 in the B terminals when power is disconnected.

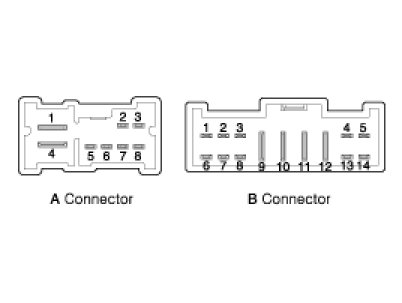

REAR BLOWER
1. There should be continuity between the NO.4in the A and NO.12n the B terminals when power and ground are connected to the NO.2and NO.14in the A terminals. (Passenger compartment relay box)
2. There should be to no continuity between the NO.4in the A and NO.12in the B terminals when power is disconnected.
