Headlamp: Service and Repair

HEAD LAMPS

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

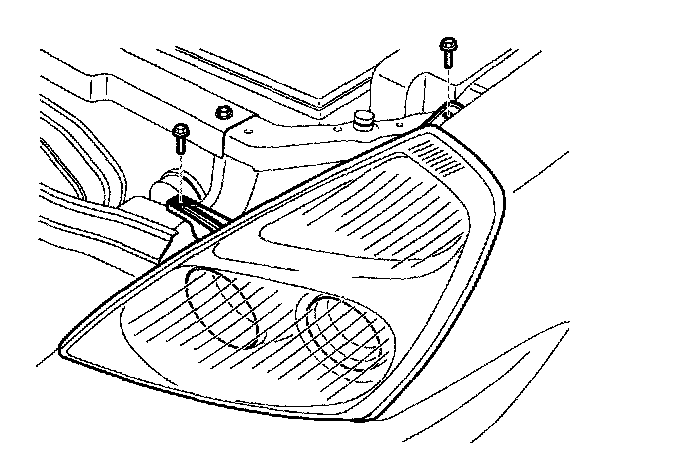

2. Loose the mounting bolts (2EA).

3. Remove the head lamp assembly after disconnecting the lamp connectors.

NOTE: Take care that holding clip (A) is not to be damaged.

Specification:

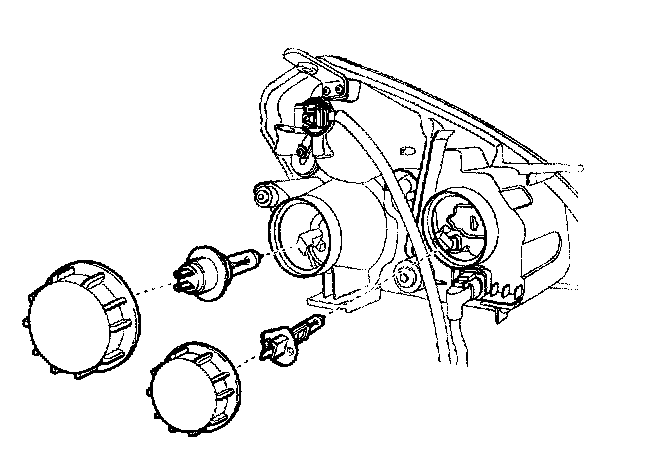

4. Remove the head lamp rear cover and pulling up head lamp bulb fixing wire clip.
5. Replace the bulb.
6. Installation is the reverse of removal.
