Repair Procedures




REPLACEMENT

1. Remove the right side trim of the trunk

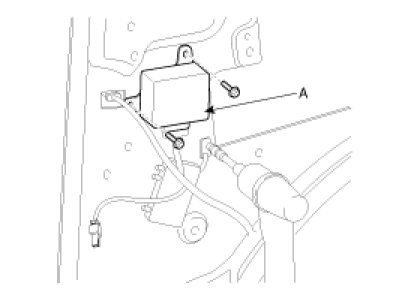

2. Loosen the mounting bolts and remove the back warning control unit (A) from the quarter panel.
