Windshield Glass
REPLACEMENTQUARTER GLASS REPLACEMENT 1.

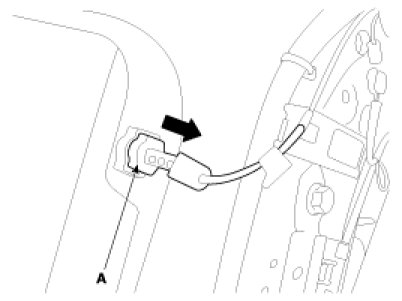

Remove the antenna cable (A).
2.
Remove the rear pillar trim.
3.

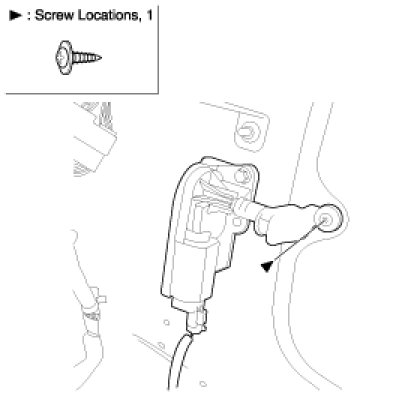

Loosen the mounting screw.
4.
After loosening the quarter glass mounting bolts, then remove the quarter glass (A).
5.
Installation is the reverse of removal.
