Windshield Washer Motor: Service and Repair
REPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper cover.
3.

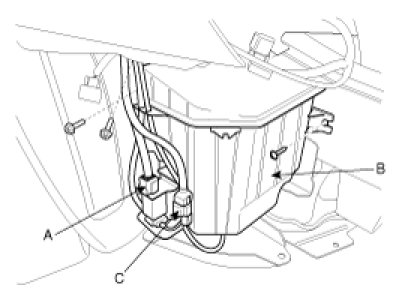

Remove the washer hose, the washer motor connector (A) and washer level sensor connector (C).
4.
Remove the washer reservoir after removing 2 bolts and 1 step bolt.
5.
Installation is the reverse of removal.
