Tail Gate

REAR WIPER MOTOR ASSEMBLY REPLACEMENT
1. Remove the tailgate trim.
2. Remove the rear wiper.

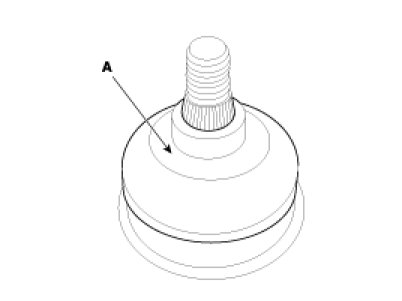

3. Remove cover (A).

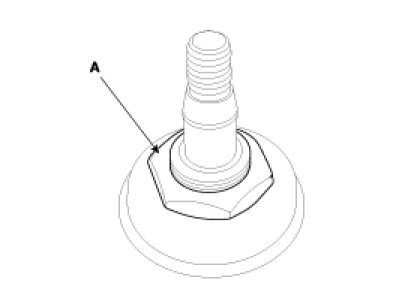

4. Loosen the mounting nut (A).

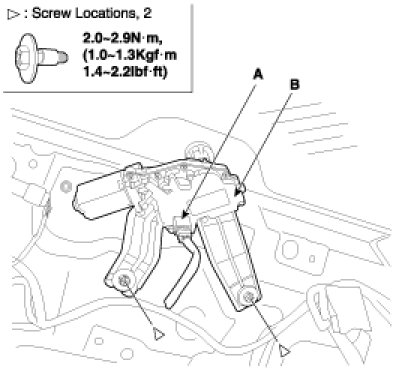

5. After disconnecting the connector (A), remove the motor (B).

6. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
- Make sure the rear wiper.
